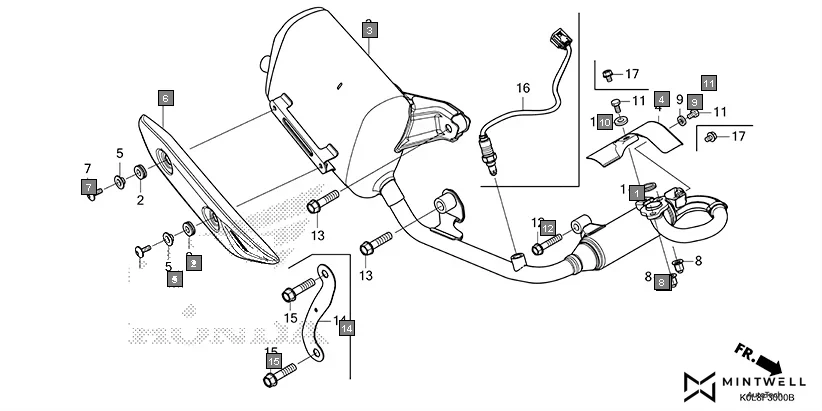

F-30 - EXHAUST MUFFLER
HONDA Activa125 SCV125N · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18292-GY1-610 | GASKET, EXH.PIPE | 1 | |
| 2 | 18293-K0P-D60 | RUBBER, PROTECTOR PACKING | 2 | |
| 3 | 18300-K0L-DK0 | MUFFLER COMP., EX. | 1 | |
| 4 | 18301-K0L-D00 | GUARD, HEAT | 1 | |
| 5 | 18314-K0L-D00 | COLLAR, MUFFLER PROTECTOR | 2 | |
| 6 | 18318-K0L-D00 | PROTECTOR, MUFFLER | 1 | |
| 7 | 90107-K0L-D00 | BOLT, SPECIAL, 6X16 | 2 | |
| 8 | 90304-K0N-D00 | NUT, HEX. CAP, 7MM | 2 | |
| 9 | 90501-K0L-D00 | WASHER, PLAIN, 6X13 | 1 | |
| 10 | 90502-K0L-D00 | WASHER, PLAIN, 6X18 | 1 | |
| 11 | 92101-06010-0B | BOLT, HEX., 6X10 | 2 | |
| 12 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 1 | |
| 14 | 18309-K0P-D01 | PLATE, CONNECTING | 1 | |
| 15 | 95801-10045-07 | BOLT, FLANGE, 10X45 | 2 | |
