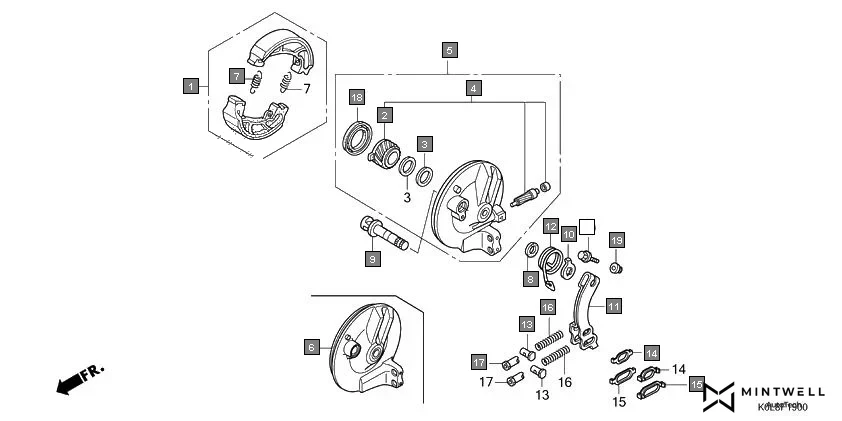

F-19 - FRONT BRAKE PANEL
HONDA Activa125 SCV125N · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06430-KWP-900 | SHOE SET, BRAKE(JB) | 1 | |
| 1 | 06430-KWP-D00 | SHOE SET, BRAKE(ASK) | 1 | |
| 2 | 44804-KVT-F01 | GEAR, SPEEDOMETER | 1 | |
| 3 | 44809-KTC-900 | WASHER, SPEEDOMETER GEAR | 2 | |
| 4 | 44820-KVT-F00 | GEAR SET, SPEEDOMETER | 1 | |
| 5 | 45010-K0P-DA0ZA | PANEL SUB COMP., FR. BRAKE *NH35M* CLOUD SILVER METALLIC | 1 | |
| 6 | 45100-K0L-D80ZA | PANEL COMP., FR. BRAKE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 45133-KPL-900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 | |
| 8 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 9 | 45141-KWP-D00 | CAM, FR. BRAKE (RR.) | 1 | |
| 10 | 45145-096-650 | INDICATOR, FR. BRAKE | 1 | |
| 11 | 45410-K86-D00 | ARM, FR. BRAKE | 1 | |
| 12 | 45435-KPL-900 | SPRING, BRAKE ARM RETURN | 1 | |
| 13 | 45453-K86-D00 | JOINT, BRAKE ARM | 2 | |
| 14 | 45454-K86-D00 | SLIDER A, JOINT | 2 | |
| 15 | 45455-K86-D00 | SLIDER B, JOINT | 2 | |
| 16 | 45456-KWP-910 | SPRING BRK CABLE END | 2 | |
| 17 | 45459-K86-D00 | NUT, BRAKE ADJUSTING | 2 | |
| 18 | 91253-KPL-900 | DUST SEAL , 41 X60 X7 | 1 | |
| 20 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
| 20 | 95702-06032-00 | BOLT, FLANGE, 6X32 | 1 | |
