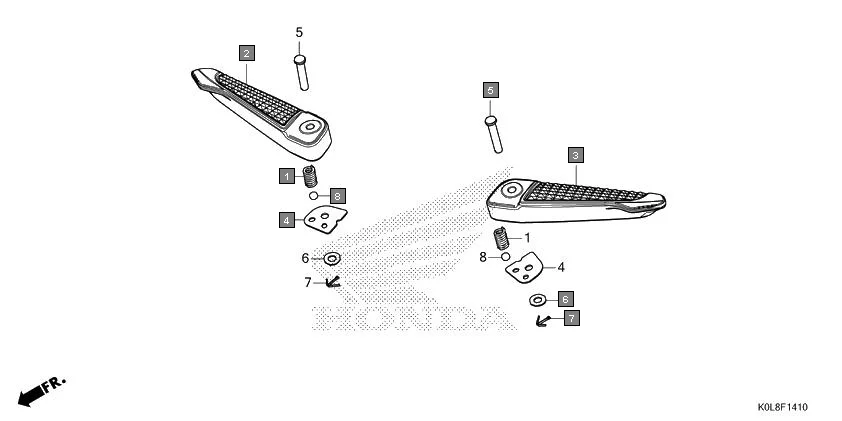

F-14-10 - PILLION STEP
HONDA Activa125 SCV125N · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28333-300-000 | SPRING KICK STARTER STOPPER | 2 | |
| 2 | 50711-K0L-D00 | ARM, R. PILLION STEP | 1 | |
| 3 | 50712-K0L-D00 | ARM, L. PILLION STEP | 1 | |
| 4 | 50718-K24-900 | PLATE, PILLION STEP CLICK | 2 | |
| 5 | 90131-KWP-F00 | PIN, PILLION STEP | 2 | |
| 6 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 7 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 2 | |
| 8 | 96211-08000 | BALL STEEL 8 MM | 2 | |
