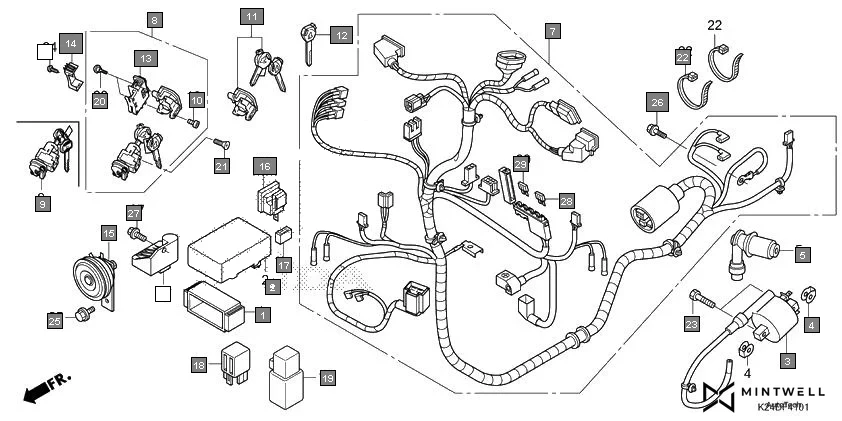

F-41-1 - WIRE HARNESS(SCV125K)
HONDA Activa125 SCV125K · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-KVE-901 | CUSHION, C.D.I. UNIT | 1 | |
| 2 | 30410-K24-H01 | C.D.I. UNIT | 1 | |
| 3 | 30500-KWP-D01 | COIL ASSY., IGNITION(WINGS) | 1 | |
| 4 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 5 | 30700-K24-921 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 6 | 31600-KWP-H01 | RECTIFIER COMP., REGULATE | 1 | |
| 7 | 32100-K24-H00 | HARNESS, WIRE | 1 | |
| 8 | 35010-KWP-H01 | KEY SET(JAY USHIN) | 1 | |
| 9 | 35102-KWP-H01 | SWITCH ASSY., COMBINATION & LOCK(JAY USHIN) | 1 | |
| 10 | 35109-KWP-H01 | BOLT, SOCKET, 5X8(JAY USHIN) | 1 | |
| 11 | 35110-KWP-H01 | KEY, SHUTTER(JAY USHIN) | 1 | |
| 12 | 35121-KWP-H00 | KEY, BLANK (JAY USHIN) | 1 | |
| 13 | 35190-KWP-H01 | SWITCH ASSY., SEAT OPENER (JAY USHIN) | 1 | |
| 14 | 35191-KWP-H01 | COVER, CABLE | 1 | |
| 15 | 38110-KWP-901 | HORN COMP. | 1 | |
| 16 | 38301-K63-D21 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 | |
| 17 | 38306-K38-901 | SUSPENSION, WINKER RELAY (STAR ENGINEERS) | 1 | |
| 18 | 38501-KPL-901 | RELAY COMP., STARTER(MULTILINK) | 1 | |
| 19 | 38506-KPL-900 | SUSP . START RELAY | 1 | |
| 20 | 90101-MT4-000 | SCREW, SCREEN SETTING | 2 | |
| 21 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 22 | 90657-KRP-901 | CABLE, TIE(LONG) | 2 | |
| 23 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 24 | 93901-24320 | SCREW, TAPPING, 4X12 | 1 | |
| 28 | 98200-31000 | BLADE, FUSE 10A | 2 | |
| 29 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
