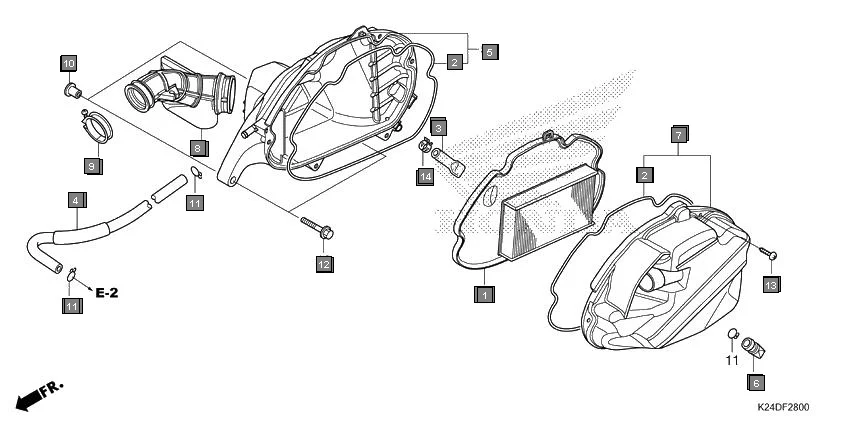

F-28 - AIR CLEANER
HONDA Activa125 SCV125K · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17210-K24-901 | ELEMENT COMP., AIR CLEANER | 1 | |
| 2 | 17213-K24-900 | SEAL, AIR CLEANER | 2 | |
| 3 | 17216-KTP-900 | TUBE, DRAIN | 1 | |
| 4 | 17218-K24-900 | TUBE, BREATHER | 1 | |
| 5 | 17225-K24-G00 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 6 | 17234-KCW-871 | TUBE, AIR CLEANER DRAIN | 1 | |
| 7 | 17245-K24-G00 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 8 | 17253-K24-G00 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 9 | 17254-KWP-D00 | BAND, AIR CLEANER CONNECTINGTUBE(40) | 1 | |
| 10 | 50731-KV3-770 | COLLAR, PILLION STEP SET | 2 | |
| 11 | 90653-KWP-F00 | CLIP, TUBE(B12.5) | 3 | |
| 12 | 93404-06040-07 | BOLT, WASH, 6 X 40 | 2 | |
| 13 | 93903-25480 | SCREW TAPPING 5X20 | 6 | |
| 14 | 95002-41200-08 | CLAMP, TUBE(D12) | 1 | |
