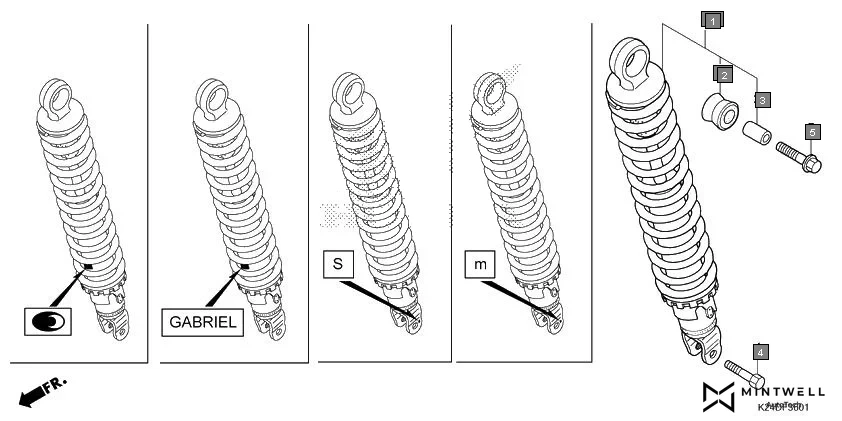

F-36-1 - REAR CUSHION(SCV125K)
HONDA Activa125 SCV125K · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K24-H01 | CUSHION ASSY., RR.(SHOWA) (S) | 1 | |
| 1 | 52400-K24-H02 | CUSHION ASSY., RR.(SHOWA) (M) | 1 | |
| 1 | 52400-K24-H11 | CUSHION ASSY., RR.(ENDURANCE) | 1 | |
| 1 | 52400-K24-H21 | CUSHION ASSY., RR.(GABRIEL) | 1 | |
| 2 | 52485-GW3-980 | BUSH, RUBBER(SHOWA)(S) | 1 | |
| 2 | 52489-KWS-901 | BUSH, RUBBER(GABRIEL) | 1 | |
| 2 | 52495-K23-902 | BUSH, RUBBER(ENDURANCE) | 1 | |
| 3 | 52486-GA7-003 | COLLAR, RUBBER BUSH (UNDER) | 1 | |
| 3 | 52486-K23-902 | COLLAR, RUBBER BUSH(ENDURANCE) | 1 | |
| 3 | 52487-KWS-901 | COLLAR, RUBBER BUSH(GABRIEL) | 1 | |
| 4 | 92201-08032-0A | BOLT, FLANGE, 8 X32 | 1 | |
| 5 | 95801-10035-00 | BOLT, FLANGE, 10X35 | 1 | |
