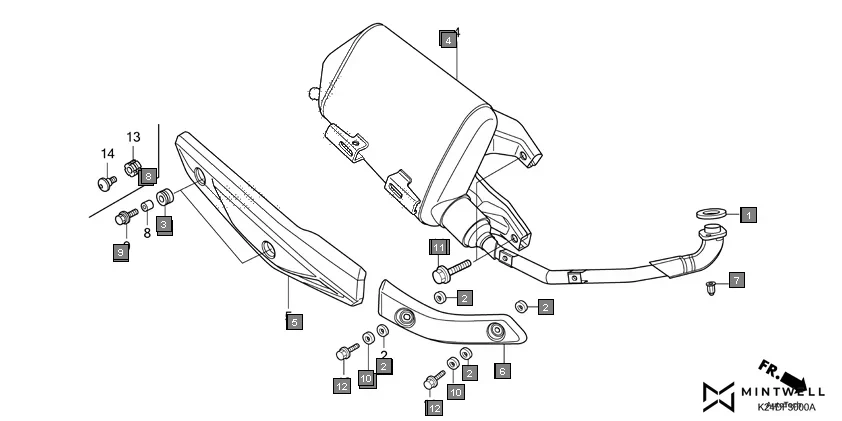

F-30 - EXHAUST MUFFLER
HONDA Activa125 SCV125K · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18292-GY1-610 | GASKET, EXH.PIPE | 1 | |
| 2 | 18292-KTP-900 | PACKING, PROTECTOR | 4 | |
| 3 | 18293-KVT-900 | RUBBER, PKG. PROT. | 2 | |
| 4 | 18300-K24-G00 | MUFFLER COMP., EX. | 1 | |
| 5 | 18318-K24-G00 | PROTECTOR, MUFFLER | 1 | |
| 6 | 18319-K24-G00 | PROTECTOR, EX. PIPE | 1 | |
| 7 | 90304-K0V-AC0 | NUT, FLANGE, 7MM | 2 | |
| 8 | 90312-KVT-900 | COLLAR,9.5X10 | 2 | |
| 9 | 93404-06020-07 | BOLT WASH, 6X20 | 2 | |
| 10 | 94101-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 11 | 95801-10040-07 | BOLT FLANGE, 10 X 40 | 2 | |
| 12 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 2 | |
