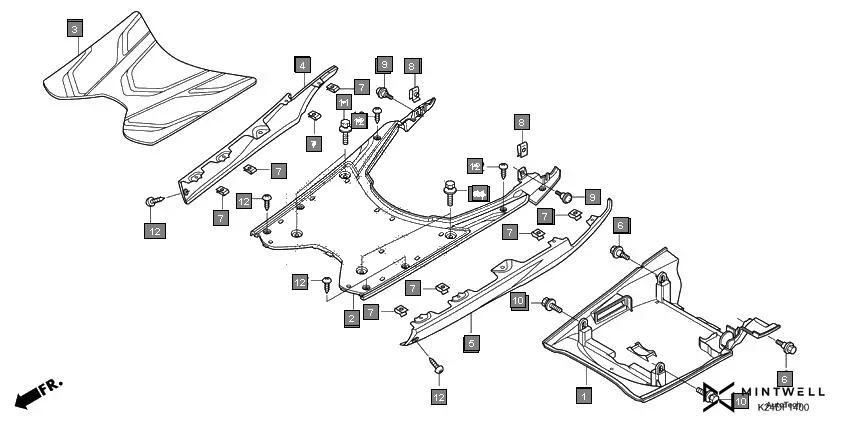

F-14 - UNDER COVER/FLOOR STEP
HONDA Activa125 SCV125K · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50621-K24-900 | COVER, UNDER | 1 | |
| 2 | 64310-K24-G00ZA | STEP, FLOOR *NH1* BLACK | 1 | |
| 3 | 64315-K24-901 | MAT, FLOOR | 1 | |
| 4 | 64320-K24-900ZZ | COVER, R. SIDE | 1 | |
| 5 | 64330-K24-900ZZ | COVER, L. SIDE | 1 | |
| 6 | 90111-162-000 | BOLT, FLANGE, 6MM | 2 | |
| 11 | 93404-06020-08 | BOLT-WASHER, 6X20 | 4 | |
