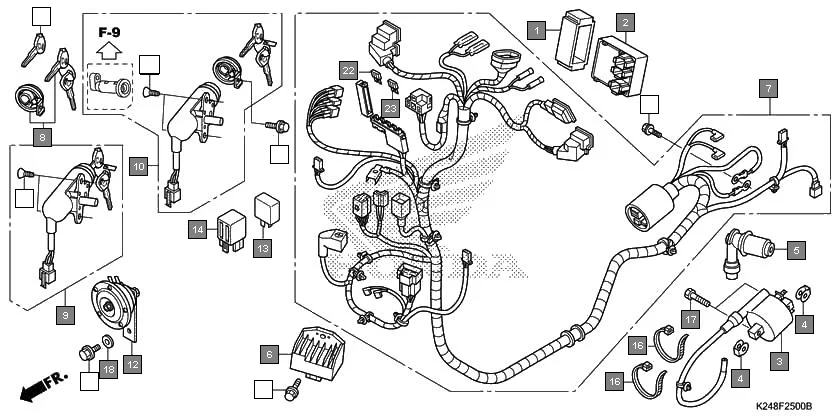

F-25 - WIRE HARNESS
HONDA Activa125 SCV125G · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-KVE-901 | CUSHION, C.D.I. UNIT | 1 | |
| 2 | 30410-K24-901 | SPARK UNIT COMP. | 1 | |
| 3 | 30500-KWP-D01 | COIL ASSY., IGNITION(WINGS) | 1 | |
| 4 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 5 | 30700-KWP-901 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 6 | 31600-KWP-D01 | RECTIFIER COMP., REGULATE(STAR ENGINEERS) | 1 | |
| 7 | 32100-K24-910 | HARNESS, WIRE | 1 | |
| 7 | 32100-K24-900 | HARNESS, WIRE | 1 | |
| 8 | 35011-KWP-910 | SHUTTER SET, KEY(JAY USHIN)(KEY NO. PXXX/QXXX) | 1 | |
| 9 | 35012-KWP-D00 | SWITCH ASSY. SET, COMBINATION& LOCK(JAY USHIN) | 1 | |
| 10 | 35014-KWP-D00 | KEY & SCREW SET(JAY USHIN) | 1 | |
| 11 | 35121-KWP-910 | KEY, BLANK(91KEYTOP2REPORDER) | 1 | |
| 12 | 38110-K24-901 | HORN COMP. | 1 | |
| 13 | 38301-KWA-831 | RELAY COMP., WINKER | 1 | |
| 14 | 38501-KPL-901 | RELAY COMP., STARTER(MULTILINK) | 1 | |
| 15 | 90164-KEE-630 | SCREW FLAT 6X12 | 2 | |
| 15 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 16 | 90657-KRP-901 | CABLE, TIE(LONG) | 2 | |
| 17 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 22 | 98200-31000 | BLADE, FUSE 10A | 2 | |
| 23 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
