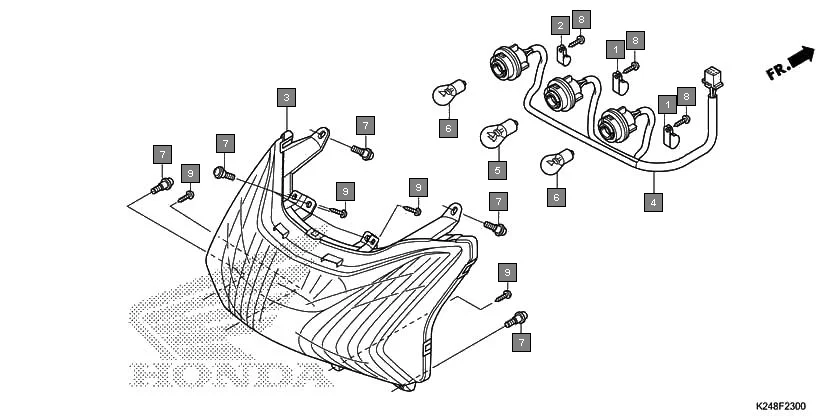

F-23 - REAR COMBINATION LIGHT
HONDA Activa125 SCV125G · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32920-KVT-901 | CLIP A, HARNESS | 2 | |
| 2 | 32930-KVT-901 | CLIP B, HARNESS | 1 | |
| 3 | 33710-K24-901 | LIGHT UNIT, RR. COMBINATION | 1 | |
| 4 | 33715-K24-901 | SOCKET COMP. | 1 | |
| 5 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 8 | 93901-34420 | SCREW ,TAPPING,4 X 16 | 3 | |
| 9 | 93903-34420 | SCREW TAPPING 4X16 | 4 | |
