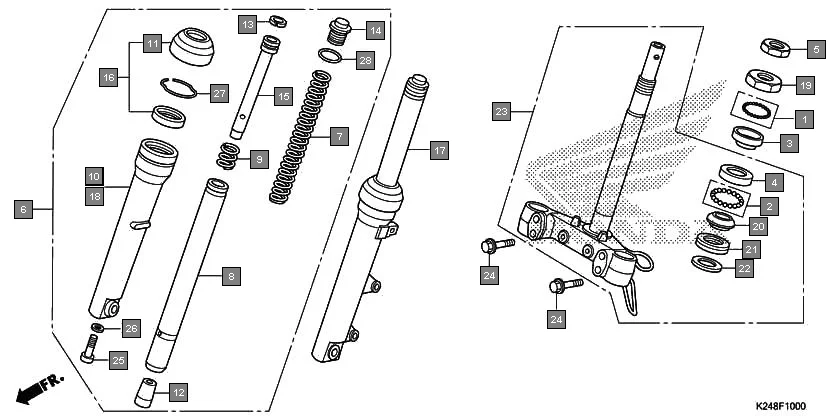

F-10 - FRONT FORK
HONDA Activa125 SCV125G · 34 parts
Parts in This Assembly (34)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06530-KEM-P00 | BALL SET, STEEL, #5X26 | 1 | |
| 2 | 06531-KEM-P00 | BALL SET, STEEL, #8X19 | 1 | |
| 3 | 50301-KEM-900 | RACE, UP STRG., BALL | 1 | |
| 4 | 50302-268-010 | RACE, STEERING BOTTOM BALL | 1 | |
| 5 | 50306-KPL-900 | NUT, STRG. STEM, LOCK | 1 | |
| 6 | 51400-K24-911 | FORK ASSY., R. FR. | 1 | |
| 6 | 51400-K24-901 | FORK ASSY., R. FR. | 1 | |
| 7 | 51401-KVT-911 | SPRING, FR. FORK | 2 | |
| 8 | 51410-K24-911 | PIPE COMP., FR. FORK | 2 | |
| 9 | 51412-KSP-901 | SPRING, REBOUND | 2 | |
| 10 | 51420-KVT-F01 | CASE, R. FR. BOTTOM | 1 | |
| 10 | 51420-KVT-961 | CASE, R. FR. BOTTOM | 1 | |
| 10 | 51420-KVT-901 | CASE, R. FR. BOTTOM | 1 | |
| 11 | 51425-KST-901 | SEAL, DUST | 2 | |
| 12 | 51432-KFN-851 | PIECE, OIL LOCK | 2 | |
| 13 | 51437-KVN-901 | RING, PISTON | 2 | |
| 14 | 51454-K24-911 | BOLT, FR. FORK | 2 | |
| 15 | 51470-KVT-911 | PIPE, SEAT | 2 | |
| 16 | 51490-KWA-941 | SEAL SET, FR. FORK | 2 | |
| 17 | 51500-K24-911 | FORK ASSY., L. FR. | 1 | |
| 17 | 51500-K24-901 | FORK ASSY., L. FR. | 1 | |
| 18 | 51520-KVT-961 | CASE, L. FR. BOTTOM | 1 | |
| 18 | 51520-K24-901 | CASE, L. FR. BOTTOM | 1 | |
| 19 | 53211-KEM-900 | RACE, STRG. TOP CONE | 1 | |
| 20 | 53212-250-010 | RACE, STRG. BOTTOM CONE | 1 | |
| 21 | 53214-250-000 | DUST, SEAL STRG. (HEAD) | 1 | |
| 22 | 53215-KPL-900 | WASHER, STRG. HEAD DUST SEAL | 1 | |
| 23 | 53219-K24-910 | STEM SUB ASSY., STEERING | 1 | |
| 23 | 53219-K24-900 | STEM SUB ASSY., STEERING | 1 | |
| 24 | 90101-KVT-D00 | BOLT, FLANGE, 10X42 | 4 | |
| 25 | 90116-KAG-901 | BOLT, SOCKET, 8MM(SHOWA) | 2 | |
| 26 | 90544-439-930 | WASHER, SPECIAL, 8 MM | 2 | |
| 27 | 90601-GF5-731 | RING OIL SEAL STOP | 2 | |
| 28 | 91356-KAG-901 | O-RING(SHOWA) | 2 | |
