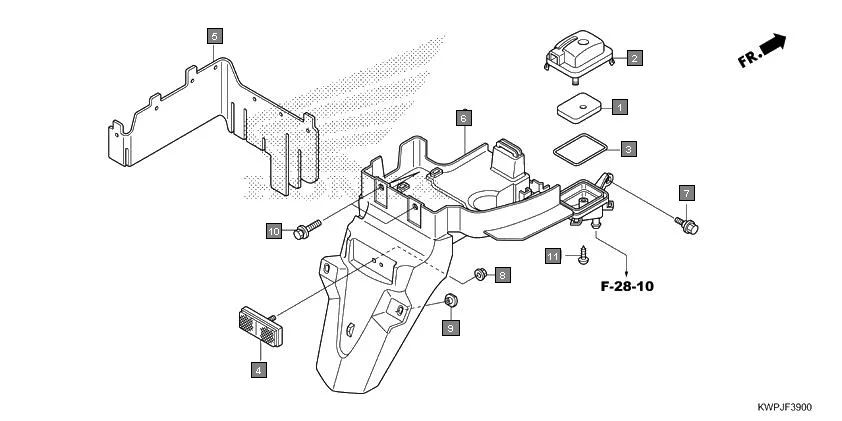

F-39 - REAR FENDER
HONDA Activa SCV110J · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18805-KPL-900 | ELEMENT, SUB AIR CLEANER | 1 | |
| 2 | 18807-KPL-900 | COVER, SUB AIR CLEANER | 1 | |
| 3 | 18812-KPL-900 | SEAL, SUB AIR CLEANER | 1 | |
| 4 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 5 | 80104-KPL-900 | PLATE RR FENDER SPLASH GUARD | 1 | |
| 6 | 80105-KWP-901 | FENDER, RR. | 1 | |
| 7 | 90111-KWP-900 | BOLT, INNER COVER | 1 | |
| 8 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 1 | |
| 9 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 10 | 93404-06012-08 | BOLT-WASHER, 6X12 | 2 | |
| 11 | 93903-25480 | SCREW TAPPING 5X20 | 1 | |
