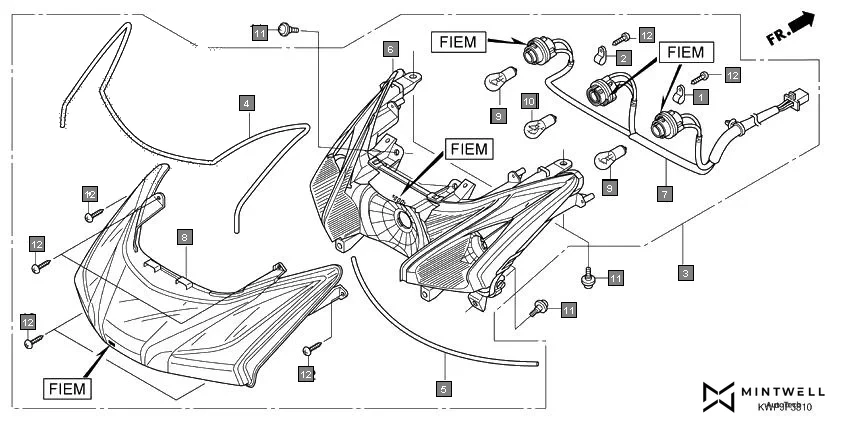

F-38-10 - REAR COMBINATION LIGHT(FIEM)
HONDA Activa SCV110J · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32920-KVT-901 | CLIP A, HARNESS | 1 | |
| 2 | 32930-KVT-901 | CLIP B, HARNESS | 1 | |
| 3 | 33700-KWP-F01 | LIGHT ASSY., RR. COMBINATION | 1 | |
| 4 | 33706-KWP-F01 | PACKING A, SEAL | 1 | |
| 5 | 33707-KWP-F01 | PACKING B, SEAL | 1 | |
| 6 | 33710-KWP-F01 | TAILLIGHT UNIT(FIEM) | 1 | |
| 7 | 33715-KWP-F01 | SOCKET COMP.(FIEM) | 1 | |
| 8 | 33720-KWP-F01 | LENS COMP., TAILLIGHT(FIEM) | 1 | |
| 9 | 34904-KTE-910 | BULB, WINKER(AMBER)(12V 21W) | 2 | |
| 9 | 34904-KRY-971 | BULB, WINKER LIGHT | 2 | |
| 9 | 34904-KTE-920 | BULB, WINKER(AMBER)(12V 21W)(PY21W) | 2 | |
| 10 | 34906-KRB-900 | BULB, TAILLIGHT(12V 21/5W) | 1 | |
| 10 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 11 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 6 | |
| 12 | 93901-24420 | SCREW, TAPPING, 4X16 | 8 | |
