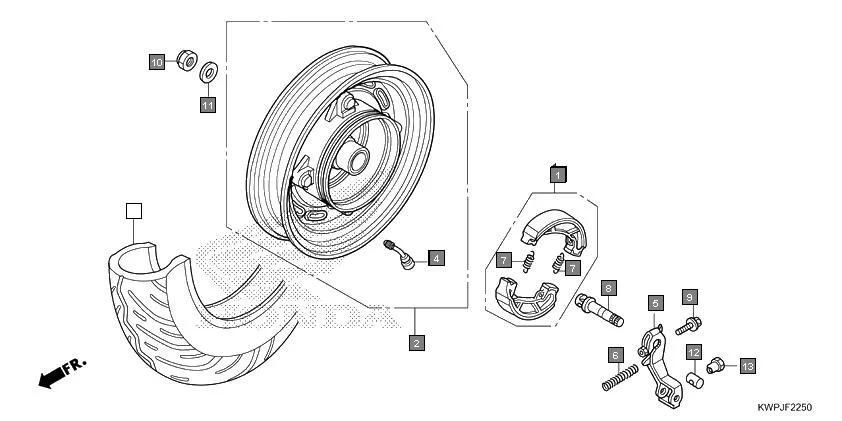

F-22-50 - REAR WHEEL
HONDA Activa SCV110J · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 42650-KWP-G30 | WHEEL SUB ASSY., RR. | 1 | |
| 5 | 43410-KWP-G00 | ARM, RR. BRAKE | 1 | |
| 6 | 43472-KPL-900 | SPRING, REAR, BRAKE ARM | 1 | |
| 9 | 90112-KPL-900 | BOLT, FLANGE, 6X30 | 1 | |
| 10 | 90305-KWP-901 | NUT, HEX., 16MM | 1 | |
| 11 | 90501-KPL-900 | WASHER, 16 MM | 1 | |
| 12 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 13 | 95015-42000 | NUT B ADJUST | 1 | |
