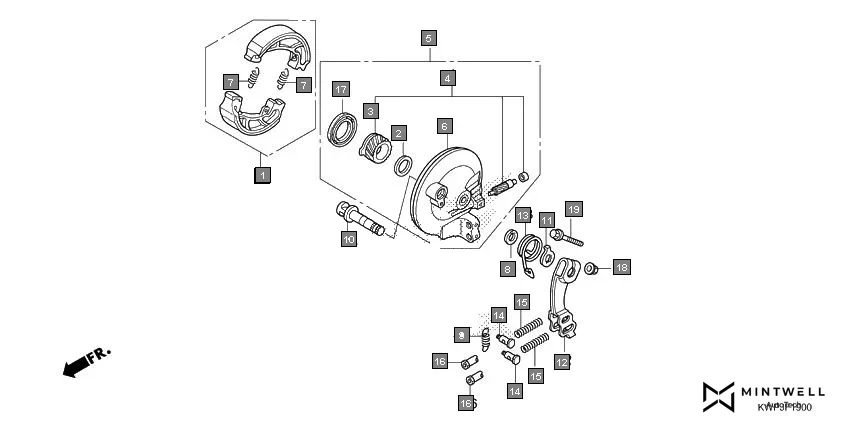

F-19 - FRONT BRAKE PANEL
HONDA Activa SCV110J · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06430-KWP-900 | SHOE SET, BRAKE(JB) | 1 | |
| 1 | 06430-KWP-D00 | SHOE SET, BRAKE(ASK) | 1 | |
| 2 | 44809-KPL-900 | WASHER, SPEEDOMETER GEAR | 1 | |
| 3 | 44811-KPL-900 | GEAR, SPDMT | 1 | |
| 4 | 44820-KWP-900 | GEAR SET, SPEEDOMETER | 1 | |
| 5 | 45010-KWP-G00 | PANEL SUB COMP., FR. BRAKE | 1 | |
| 6 | 45100-KWP-H20 | PANEL COMP., FR. BRAKE | 1 | |
| 7 | 45133-KPL-900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 | |
| 8 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 9 | 45134-KWP-G30 | SPRING, BRAKE ARM JOINT | 1 | |
| 10 | 45141-KWP-D00 | CAM, FR. BRAKE (RR.) | 1 | |
| 11 | 45145-KPL-900 | INDICATOR, FRONT BRAKE | 1 | |
| 12 | 45410-KWP-E00 | ARM COMP., FR. BRAKE | 1 | |
| 13 | 45435-KPL-900 | SPRING, BRAKE ARM RETURN | 1 | |
| 14 | 45453-KWP-G30 | JOINT, BRAKE ARM | 2 | |
| 15 | 45456-KWP-910 | SPRING BRK CABLE END | 2 | |
| 16 | 45459-KWP-911 | NUT BRAKE ADJUSTING | 2 | |
| 17 | 91253-KPL-900 | DUST SEAL , 41 X60 X7 | 1 | |
| 18 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 19 | 95701-06035-00 | BOLT, FLANGE, 6X35 | 1 | |
