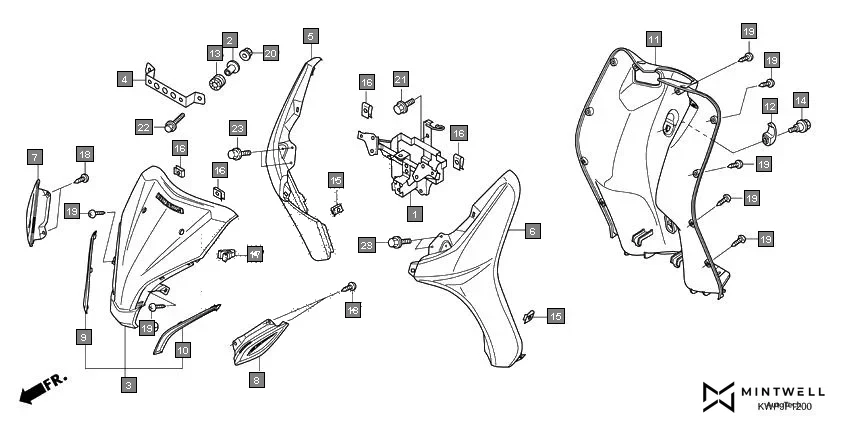

F-12 - FRONT COVER
HONDA Activa SCV110J · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50330-KWP-H00 | TRAY COMP., BATTERY | 1 | |
| 2 | 61104-428-730 | COLLAR, FR. FENDER(BLACK)..... (FOR RR.) | 2 | |
| 3 | 64200-KWP-H00ZA | COVER SET, FR.(WL) *TYPE8* | 1 | |
| 3 | 64200-KWP-H00ZB | COVER SET, FR.(WL) *TYPE7* | 1 | |
| 3 | 64200-KWP-H00ZC | COVER SET, FR.(WL) *TYPE6* | 1 | |
| 3 | 64200-KWP-H00ZD | COVER SET, FR.(WL) *TYPE5* | 1 | |
| 3 | 64200-KWP-H00ZE | COVER SET, FR.(WL) *TYPE4* | 1 | |
| 3 | 64200-KWP-H00ZF | COVER SET, FR.(WL) *TYPE3* | 1 | |
| 3 | 64200-KWP-H00ZG | COVER SET, FR.(WL) *TYPE2* | 1 | |
| 3 | 64200-KWP-H00ZH | COVER SET, FR.(WL) *TYPE1* | 1 | |
| 3 | 64200-KWP-H00ZL | COVER SET, FR.(WL) *TYPE9* | 1 | |
| 3 | 64200-KWP-H00ZM | COVER SET, FR.(WL) *TYPE11* | 1 | |
| 3 | 64200-KWP-H00ZN | COVER SET, FR.(WL) *TYPE10* | 1 | |
| 4 | 64303-KWP-F00 | STAY, FR. NUMBER PLATE | 1 | |
| 5 | 64304-KWP-F00ZZ | COVER COMP., R. FR. | 1 | |
| 6 | 64305-KWP-F00ZZ | COVER COMP., L. FR. | 1 | |
| 7 | 64307-KWP-H00 | LOUVER, R. FR. COVER | 1 | |
| 8 | 64308-KWP-H00 | LOUVER, L. FR. COVER | 1 | |
| 9 | 64380-KWP-H00 | GARNISH, R. FR. COVER | 1 | |
| 10 | 64390-KWP-H00 | GARNISH, L. FR. COVER | 1 | |
| 11 | 81131-KWP-H00ZA | COVER, INNER *NH1* BLACK | 1 | |
| 12 | 81132-KWP-H00ZA | HOOK, LUGGAGE *NH1* BLACK | 1 | |
| 13 | 84703-425-000 | RUBBER TAIL LIGHT (MOUNT) | 2 | |
| 14 | 90107-KVB-900 | BOLT, SPECIAL, 6MM | 1 | |
| 15 | 90344-KRB-900 | NUT, CLIP, 5MM | 10 | |
| 16 | 90344-KRP-900 | NUT CLIP 5MM | 4 | |
| 17 | 90601-SJA-003 | CLIP, SNAP FITTING | 4 | |
| 18 | 93903-25280 | SCREW, TAPPING 5X12 | 4 | |
| 19 | 93903-25380 | SCREW TAPPING 5X16 | 12 | |
| 20 | 94050-06080 | NUT, FLANGE, 6MM | 2 | |
| 21 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 3 | |
| 22 | 95701-06025-07 | BOLT, FLANGE, 6X25 | 2 | |
| 23 | 95801-06010-08 | BOLT, FLANGE, 6X10 | 4 | |
