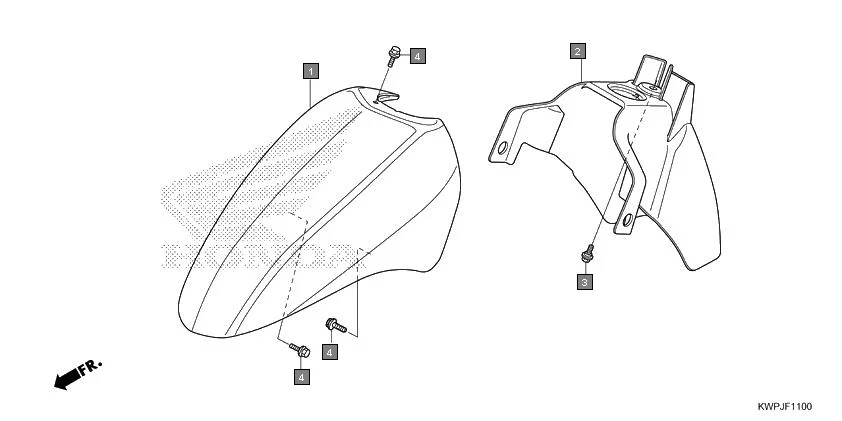

F-11 - FRONT FENDER
HONDA Activa SCV110J · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61100-KWP-H00ZZ | FENDER A, FR. | 1 | |
| 2 | 61120-KWP-H00ZA | FENDER B, FR. *NH1* BLACK | 1 | |
| 3 | 90111-KWP-900 | BOLT, INNER COVER | 1 | |
| 4 | 95801-06012-07 | BOLT, FLANGE, 6X12 | 3 | |
