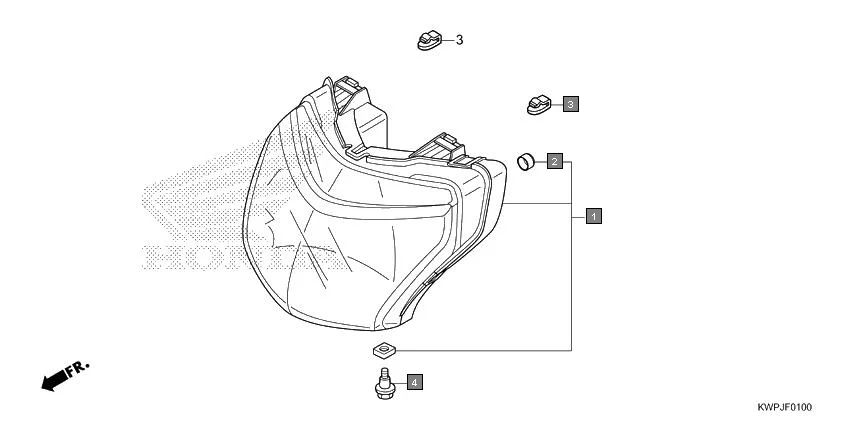

F-1 - HEADLIGHT
HONDA Activa SCV110J · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-KWP-H01 | HEADLIGHT ASSY.(LUMAX) | 1 | |
| 1 | 33100-KWP-H11 | HEADLIGHT ASSY.(FIEM) | 1 | |
| 2 | 33113-MEE-D01 | PIPE, CP | 1 | |
| 3 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 4 | 90101-KTE-650 | BOLT, ADJUSTING | 1 | |
