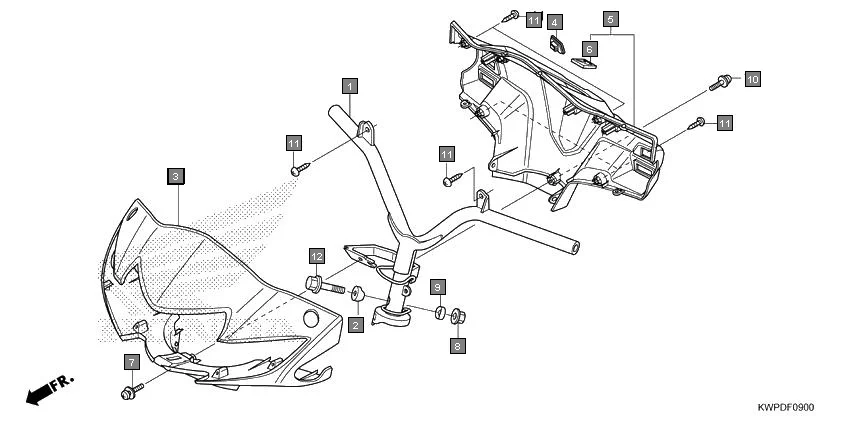

F-9 - STEERING HANDLE/HANDLE COVER
HONDA Activa SCV110H · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-KWP-G30 | HANDLE COMP., STEERING | 1 | |
| 2 | 53124-KWP-900 | COLLAR HANDLE SET | 1 | |
| 3 | 53205-KWP-F00ZA | COVER, FR. HANDLE *YR329M* MAJESTIC BROWN METALLIC | 1 | |
| 3 | 53205-KWP-F00ZC | COVER, FR. HANDLE *NH1* BLACK | 1 | |
| 3 | 53205-KWP-F00ZD | COVER, FR. HANDLE *NHB63P* PEARL AMAZING WHITE | 1 | |
| 3 | 53205-KWP-F00ZF | COVER, FR. HANDLE *B220M* TRANCE BLUE METALLIC | 1 | |
| 3 | 53205-KWP-F00ZH | COVER, FR. HANDLE*NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 3 | 53205-KWP-F00ZJ | COVER, FR. HANDLE*NHB60M* MAT SELENE SILVER METALLIC | 1 | |
| 3 | 53205-KWP-F00ZG | COVER, FR. HANDLE *R355M*.IMPERIAL RED METALLIC | 1 | |
| 4 | 53207-K24-G00 | CAP, HEADLIGHT SWITCH | 1 | |
| 5 | 53250-KWP-G30ZA | COVER COMP., RR. HANDLE *NH1* BLACK | 1 | |
| 6 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 7 | 90101-KWP-G00 | SCREW-WASHER, 5X19 | 1 | |
| 8 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
| 9 | 90502-KWP-900 | COLLAR B HNDL SET | 1 | |
| 10 | 93891-05016-07 | SCREW WASH 5X16 | 1 | |
| 11 | 93903-34380 | SCREW, TAPPING, 4X12 | 6 | |
| 12 | 95801-10055-08 | BOLT, FLANGE, 10X55 | 1 | |
