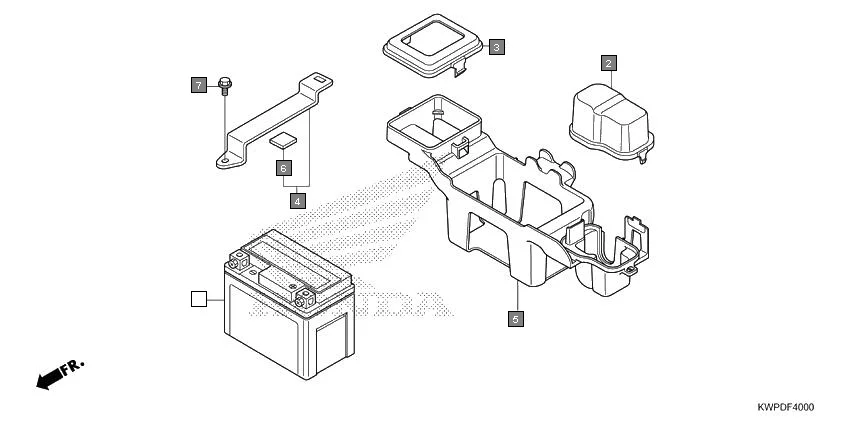

F-40 - BATTERY
HONDA Activa SCV110H · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KVT-941 | BATTERY ASSY.,MF4 | 1 | |
| 2 | 50325-KWP-D01 | BOX, RELAY UPPER | 1 | |
| 3 | 50325-KWP-E00 | COVER, C.D.I. UNIT | 1 | |
| 4 | 50341-KWP-D00 | BAND COMP., BATTERY | 1 | |
| 5 | 50381-KWP-E00 | CASE, BATTERY | 1 | |
| 6 | 50386-KWP-D00 | RUBBER A, BATTERY | 1 | |
