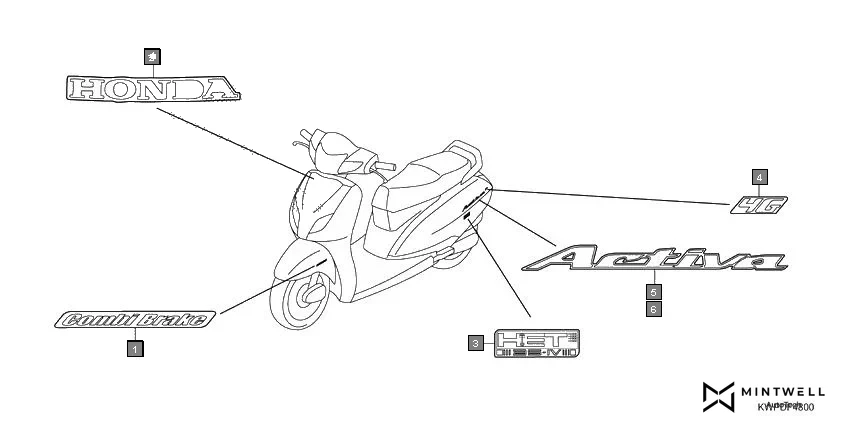

F-48 - MARK/EMBLEM
HONDA Activa SCV110H · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61106-KWP-910ZA | MARK(COMBI BRAKE)*TYPE1* Black + Red | 1 | |
| 1 | 61106-KWP-910ZB | MARK(COMBI BRAKE)*TYPE2* | 1 | |
| 1 | 61106-K24-G00ZA | MARK(COMBI BRAKE) *TYPE1*R. SIDE ONLY) | 1 | |
| 1 | 61106-KVT-G00ZB | MARK(COMBI BRAKE)*TYPE1* (LEFT HAND SIDE) | 1 | |
| 2 | 87101-KWP-G30ZA | MARK, FR. CENTER COVER*TYPE1* | 1 | |
| 2 | 86101-K24-G00ZA | MARK, HONDA(105MM) *TYPE2* | 1 | |
| 2 | 87101-KWP-900ZA | MARK, FR. CENTER COVER *TYPE1* | 1 | |
| 2 | 87101-KWP-900ZB | MARK, FR. CENTER COVER *TYPE2* | 1 | |
| 3 | 86833-K43-900ZA | MARK, HET BS 4 *TYPE1* (R SIDE ONLY) | 1 | |
| 4 | 86834-KWP-G30ZA | MARK(4G) *TYPE1* | 2 | |
| 5 | 87515-KWP-F00 | EMBLEM, R. BODY COVER | 1 | |
| 6 | 87615-KWP-F00 | EMBLEM, L. BODY COVER | 1 | |
