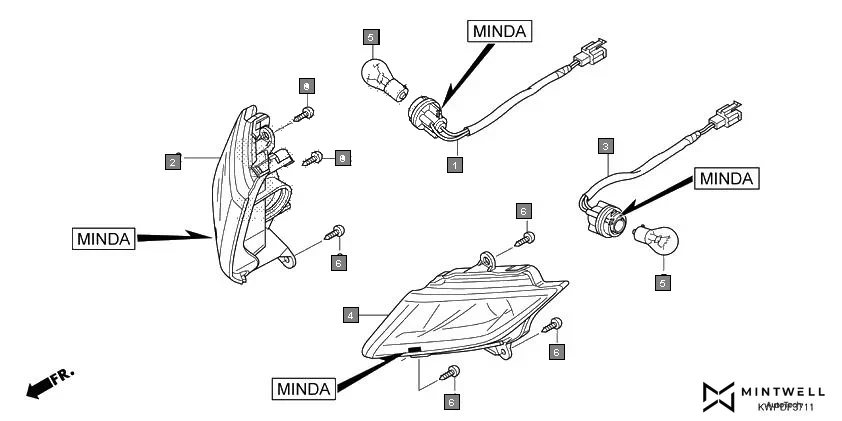

F-37-11 - FRONT WINKER(MINDA)
HONDA Activa SCV110H · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33405-KWP-D21 | SOCKET COMP., R. | 1 | |
| 2 | 33410-KWP-F02 | LENS COMP., R. | 1 | |
| 3 | 33455-KWP-D21 | SOCKET COMP., L. | 1 | |
| 4 | 33460-KWP-F02 | LENS COMP., L. | 1 | |
| 5 | 34904-KRY-971 | BULB, WINKER LIGHT | 2 | |
| 5 | 34904-KTE-920 | BULB, WINKER(AMBER)(12V 21W)(PY21W) | 2 | |
| 6 | 93903-24310 | SCREW, TAPPING, 4X12 | 6 | |
