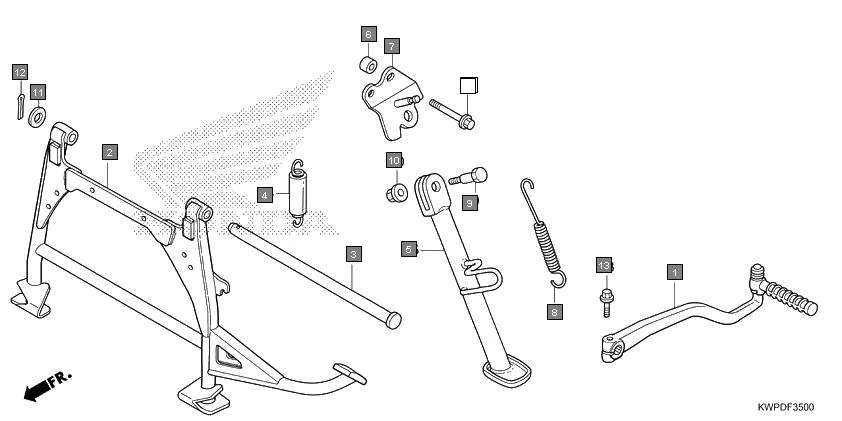

F-35 - KICK STARTER ARM/STAND
HONDA Activa SCV110H · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28300-KVT-900 | ARM ASSY., KICK STARTER | 1 | |
| 2 | 50500-KZK-D00 | STAND COMP., MAIN | 1 | |
| 3 | 50503-GCC-000 | SHAFT, MAIN STAND | 1 | |
| 4 | 50505-KWP-E00 | SPRING ASSY., MAIN STAND | 1 | |
| 5 | 50530-KWP-D00 | BAR COMP., SIDE STAND | 1 | |
| 6 | 50532-KWP-D00 | COLLAR, SIDE STAND | 2 | |
| 7 | 50535-KWP-D00 | BRACKET, SIDE STAND | 1 | |
| 8 | 50536-KPL-900 | SPG. SIDE SET | 1 | |
| 9 | 90109-KPL-900 | BOLT SIDE STAND PIVOT | 1 | |
| 10 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
| 11 | 94102-12000 | WASHER, PLAIN, 12MM | 1 | |
| 12 | 94201-25250 | PIN, SPLIT, 2.5X25 | 1 | |
| 13 | 95701-08025-07 | BOLT FLANGE 8X25 | 1 | |
| 14 | 95801-10070-07 | BOLT, FLANGE, 10X70 | 2 | |
| 14 | 95802-10070-07 | BOLT, FLANGE, 10X70 | 2 | |
