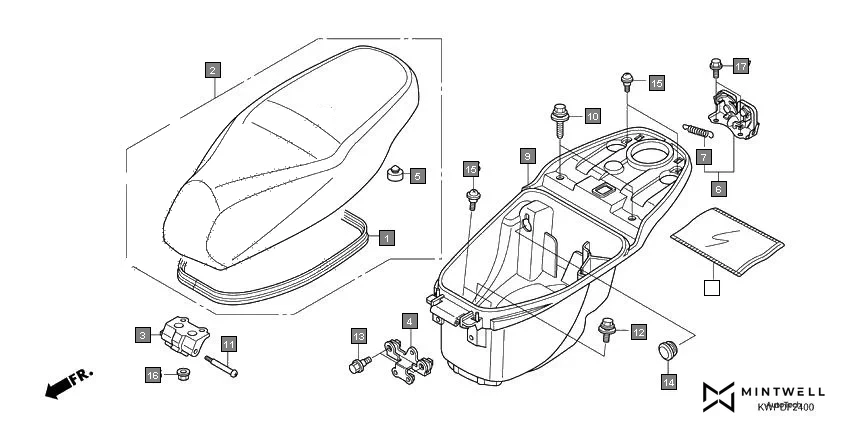

F-24 - SEAT/LUGGAGE BOX
HONDA Activa SCV110H · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77115-KWP-900 | RUBBER, SEAL | 1 | |
| 2 | 77200-KWP-G01ZA | SEAT COMP., DOUBLE(TS TECH)*TYPE1* | 1 | |
| 3 | 77201-KWP-G30 | HINGE, SEAT | 1 | |
| 4 | 77203-KWP-900 | STAY, HOOK LUGGAGE | 1 | |
| 5 | 77206-KG8-900 | RUBBER, SEAT SETTING | 2 | |
| 6 | 77235-KWP-900 | SEAT CATCH COMP | 1 | |
| 7 | 77236-GBL-000 | SPRING SEAT CATCH | 1 | |
| 8 | 77251-KPL-900 | BAG, SERVICE BOOK | 1 | |
| 9 | 81250-KWP-G30 | BOX, LUGGAGE | 1 | |
| 10 | 90101-KWP-900 | BOLT-WASH 8X40 | 2 | |
| 11 | 90105-KTP-900 | PIN, HINGE | 1 | |
| 12 | 90107-KWP-900 | BOLT WASH 8 X 16 | 1 | |
| 13 | 90112-KRP-900 | BOLT, FLANGE, 6X18 | 2 | |
| 14 | 90862-KWP-G00 | PLUG, END | 1 | |
| 15 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 16 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 17 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 | |
