F-11-FRONT FENDER

HONDAActiva SCV110H · 3 parts

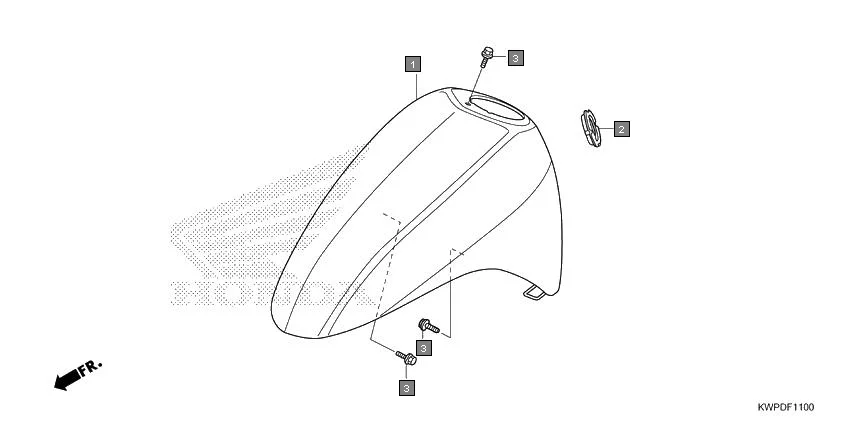

F-11 FRONT FENDER assembly diagram for HONDA Activa SCV110H

Parts in This Assembly (3)

Ref #Part NumberDescriptionQty
161100-KWP-F00ZZFENDER, FR.1
261105-KWP-910GROMMET, FR. FENDER1
395801-06010-07BOLT, FLANGE, 6X103
