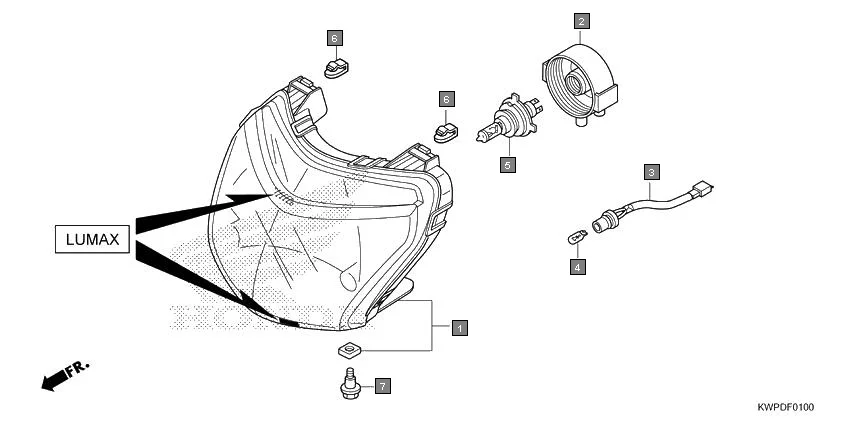

F-1 - HEADLIGHT(LUMAX)
HONDA Activa SCV110H · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33110-KWP-F01 | HEADLIGHT UNIT(LUMAX) | 1 | |
| 2 | 33126-KWP-F01 | COVER, RUBBER(LUMAX) | 1 | |
| 3 | 33150-KWP-F01 | SOCKET ASSY., POSITION LIGHT | 1 | |
| 4 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 5 | 34901-KTE-740 | BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) | 1 | |
| 5 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 6 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 7 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
