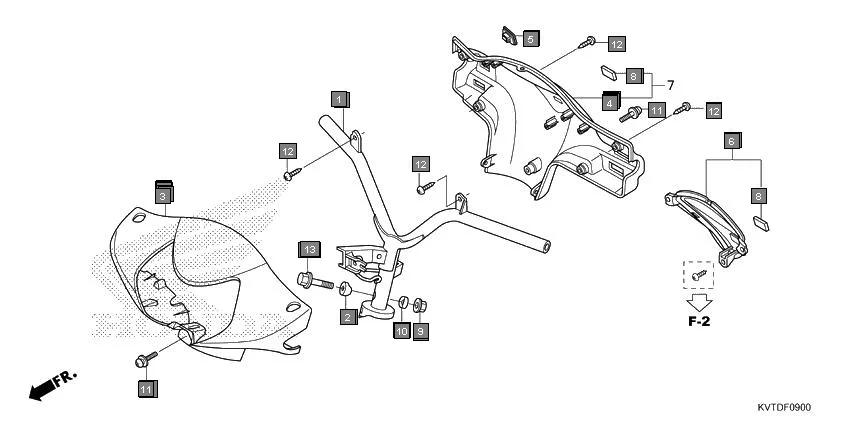

F-9 - STEERING HANDLE/HANDLE COVER
HONDA Aviator SCV110GK · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-KVT-G10 | HANDLE COMP., STEERING | 1 | |
| 2 | 53124-KWP-900 | COLLAR HANDLE SET | 1 | |
| 3 | 53205-KVT-G10ZA | COVER, FR. HANDLE*R329M* REBEL RED METALLIC | 1 | |
| 3 | 53205-KVT-G10ZB | COVER, FR. HANDLE*NHB63P* PEARL AMAZING WHITE | 1 | |
| 3 | 53205-KVT-G10ZC | COVER, FR. HANDLE*NHB60M* MAT SELENE SILVER METALLIC | 1 | |
| 3 | 53205-KVT-G10ZD | COVER, FR. HANDLE*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 4 | 53206-KVT-960ZM | COVER, HANDLE RR. *NHB60M* MAT SELENE SILVER METALLIC | 1 | |
| 4 | 53206-KVT-960ZB | COVER, HANDLE RR.*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 4 | 53206-KVT-960ZD | COVER, HANDLE RR.*R329M* REBEL RED METALLIC | 1 | |
| 4 | 53206-KVT-960ZK | COVER, HANDLE RR. *NHB63P* PEARL AMAZING WHITE | 1 | |
| 5 | 53207-K24-G00 | CAP, HEADLIGHT SWITCH | 1 | |
| 6 | 53208-KVT-970ZA | COVER COMP., METER GARNISH *NH411M* FORCE SILVER METALLIC | 1 | |
| 8 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 10 | 90502-KWP-900 | COLLAR B HNDL SET | 1 | |
| 11 | 93891-05016-07 | SCREW WASH 5X16 | 2 | |
| 13 | 95801-10055-08 | BOLT, FLANGE, 10X55 | 1 | |
