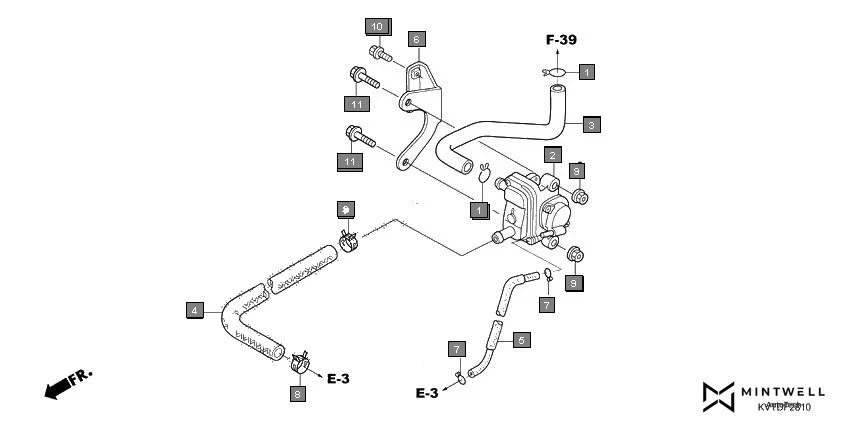

F-28-10 - AIR SUCTION VALVE
HONDA Aviator SCV110GK · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17316-KWP-E00 | CLIP, BREATHER TUBE | 2 | |
| 2 | 18600-KWP-901 | VALVE ASSY,AIR SUCTION | 1 | |
| 3 | 18651-KVT-900 | TUBE, AIR INJECTION CONTROL VALVE | 1 | |
| 4 | 18652-KZK-900 | HOSE, AIR SUCTION VALVE | 1 | |
| 5 | 18653-KWP-900 | TUBE ASV VACUUM | 1 | |
| 6 | 50141-KWP-D00 | STAY, AIR SUCTION VALVE | 1 | |
| 7 | 90651-KWP-F00 | CLIP, TUBE(B7) | 2 | |
| 8 | 90682-KWP-F00 | CLAMP, CANISTER HOSE | 2 | |
| 10 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 | |
| 11 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 2 | |
