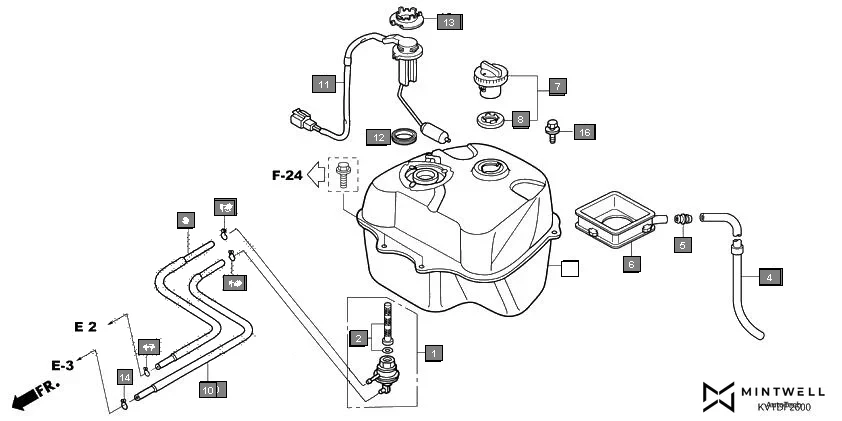

F-26 - FUEL TANK
HONDA Aviator SCV110GK · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16950-KRP-981 | COCK ASSY,FUEL | 1 | |
| 2 | 16952-KRP-980 | SCREEN SET, FUEL STRAINER | 1 | |
| 3 | 17500-KVT-305 | TANK COMP., FUEL | 1 | |
| 4 | 17515-KVT-900 | TUBE, 8X12X480 | 1 | |
| 5 | 17525-KTP-900 | JOINT FUEL TUBE | 1 | |
| 6 | 17525-KVT-900 | TRAY, FUEL | 1 | |
| 7 | 17620-KRP-980 | CAP COMP, FUEL FILLER | 1 | |
| 8 | 17632-383-831 | PACKING , FUEL FILLTER CAP | 1 | |
| 9 | 17683-KVT-D01 | TUBE COMP., FUEL | 1 | |
| 10 | 17684-KVT-D00 | TUBE COMP., VACUUM | 1 | |
| 11 | 37800-KVT-911 | FUEL UNIT | 1 | |
| 12 | 37801-GA7-700 | PACKING, BASE | 1 | |
| 13 | 37802-GA7-700 | RETAINER FUEL UNIT | 1 | |
| 15 | 90652-KWP-F00 | CLIP, TUBE(B8) | 1 | |
| 17 | 90602-K0L-D00 | CLIP, TUBE(C9) | 1 | |
