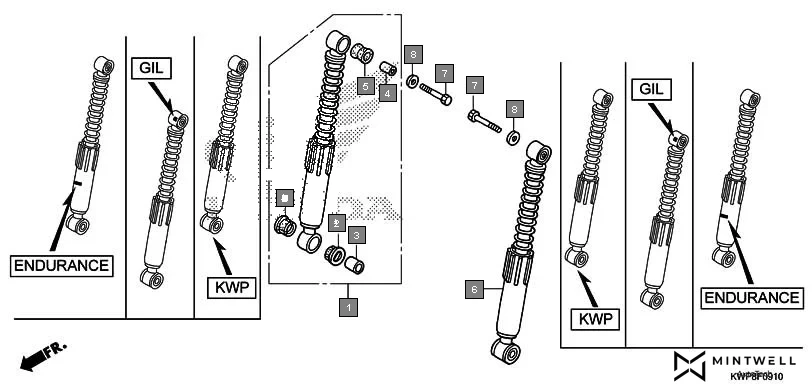

F-9-10 - FRONT CUSHION
HONDA Activa SCV110G · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-KWP-901 | CUSHION ASSY R FR | 1 | |
| 1 | 51400-KWP-D01 | CUSHION ASSY., R. FR.(ENDURANCE) | 1 | |
| 1 | 51400-KWP-E02 | CUSHION ASSY., R. FR.(GABRIEL)(GIL) | 1 | |
| 2 | 51413-GC8-003 | BUSH, FR. CUSHION UNDER | 4 | |
| 2 | 51413-KPL-902 | BUSH, FR. CUSHION UNDER(GABRIEL) | 4 | |
| 2 | 51413-KWP-D01 | BUSH, FR. CUSHION UNDER(ENDURANCE) | 4 | |
| 3 | 51486-GC8-003 | COLLAR, RUBBER, BUSH | 2 | |
| 3 | 51486-KPL-903 | COLLAR, RUBBER BUSH(GABRIEL)(GIL) | 2 | |
| 3 | 51487-KWP-D01 | COLLAR, RUBBER BUSH(B)(ENDURANCE) | 2 | |
| 4 | 51486-KRP-981 | COLLAR, FR. CUSHION, RUBBER BUSH | 2 | |
| 4 | 51486-KWP-D01 | COLLAR, RUBBER BUSH(A)(ENDURANCE) | 2 | |
| 4 | 52486-KPL-903 | COLLAR, RUBBER BUSH(GABRIEL)(GIL) | 2 | |
| 5 | 51489-KWP-D01 | BUSH, FR. CUSHION UPPER(ENDURANCE) | 2 | |
| 5 | 52489-331-003 | RUBBER, A JOINT | 2 | |
| 5 | 52489-KPL-902 | BUSH, RUBBER(GABRIEL)(GIL) | 2 | |
| 6 | 51500-KWP-901 | CUSHION ASSY L FR | 1 | |
| 6 | 51500-KWP-D01 | CUSHION ASSY., L. FR.(ENDURANCE) | 1 | |
| 6 | 51500-KWP-E02 | CUSHION ASSY., L. FR.(GABRIEL)(GIL) | 1 | |
| 7 | 90121-KPL-900 | BOLT, HEX., 8X32 | 2 | |
| 8 | 90443-KPL-900 | WASHER,SPECIAL, 8MM | 2 | |
