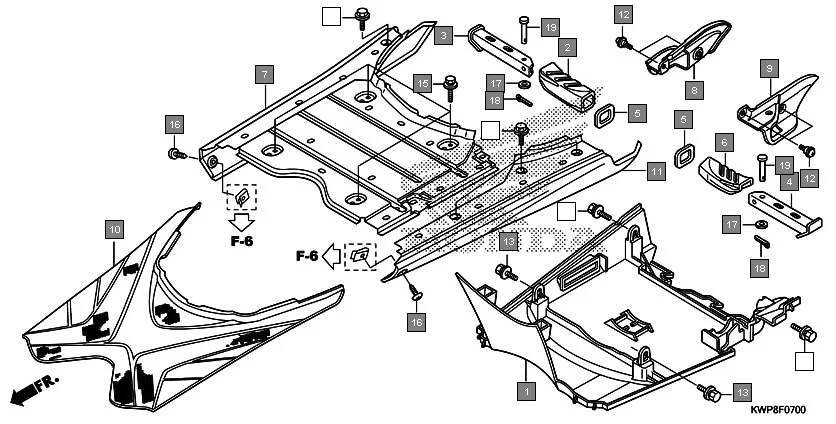

F-7 - FLOOR PANEL/PILLION STEP
HONDA Activa SCV110G · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50621-KWP-900 | COVER, UNDER | 1 | |
| 2 | 50710-KWP-E00 | RUBBER, R. PILLION STEP | 1 | |
| 3 | 50711-KWP-900 | BAR, R. PILLION STEP | 1 | |
| 4 | 50712-KWP-900 | BAR, L. PILLION STEP | 1 | |
| 5 | 50713-KWP-900 | WASHER, PILLION STEP | 2 | |
| 6 | 50720-KWP-E00 | RUBBER, L. PILLION STEP | 1 | |
| 7 | 64310-KWP-D00ZZ | PANEL COMP., FLOOR | 1 | |
| 8 | 64312-KWP-900 | COVER, R. PILLION STEP | 1 | |
| 9 | 64313-KWP-900 | COVER, L. PILLION STEP | 1 | |
| 10 | 64315-KWP-F00 | MAT, FLOOR | 1 | |
| 11 | 64330-KWP-900ZZ | COVER COMP., L. SIDE | 1 | |
| 13 | 93404-06012-08 | BOLT-WASHER, 6X12 | 2 | |
| 14 | 93404-06016-08 | BOLT, WASH, 6X16 | 2 | |
| 15 | 93404-06020-08 | BOLT-WASHER, 6X20 | 4 | |
| 17 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 18 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 2 | |
| 19 | 95015-81000 | PIN A PILLION STEP | 2 | |
