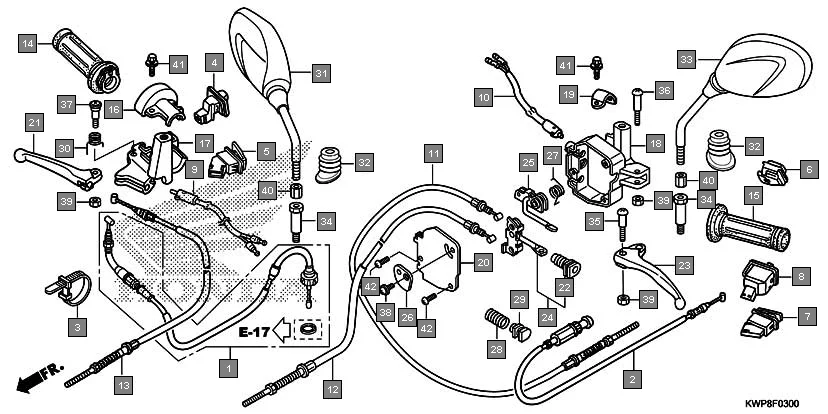

F-3 - HANDLE LEVER/SWITCH/CABLE
HONDA Activa SCV110G · 45 parts
Parts in This Assembly (45)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06179-KZK-901 | CABLE SET, THROTTLE | 1 | |
| 2 | 17950-KWP-900 | CABLE COMP., CHOKE | 1 | |
| 3 | 32161-KSP-920 | BAND B1, WIRE | 1 | |
| 4 | 35150-KWP-D11 | SWITCH UNIT, LIGHTING(MINDA) | 1 | |
| 4 | 35150-KZK-901 | SWITCH UNIT, LIGHTING(JAY USHIN) | 1 | |
| 5 | 35160-KWP-901 | SWITCH, UNIT START | 1 | |
| 6 | 35170-KPL-901 | SWITCH UNIT, DIMMER(MINDA) | 1 | |
| 6 | 35170-KPL-842 | SWITCH, UNIT DIMMER | 1 | |
| 7 | 35180-KWP-901 | SWITCH, UNIT HORN | 1 | |
| 8 | 35200-KVT-911 | SWITCH, UNIT WINKER | 1 | |
| 8 | 35200-KWP-901 | SWITCH UNIT, WINKER(MINDA) | 1 | |
| 9 | 35340-KWP-900 | SWITCH ASSY., FR. STOP | 1 | |
| 10 | 35340-KWP-F01 | SWITCH ASSY., FR. STOP | 1 | |
| 11 | 43450-KWP-910 | CABLE COMP., RR. BRAKE | 1 | |
| 12 | 45440-KWP-910 | CABLE COMP., L. FR. BRAKE | 1 | |
| 13 | 45450-KWP-910 | CABLE COMP., R. FR. BRAKE | 1 | |
| 14 | 53146-KRB-901 | GRIP COMP., THROTTLE | 1 | |
| 15 | 53166-KPL-901 | GRIP, L. HANDLE | 1 | |
| 16 | 53167-KPL-900 | HOUSING , UPP., THROT | 1 | |
| 17 | 53168-KWP-900 | HOUSING, UND., THROT. | 1 | |
| 18 | 53172-KWP-910 | BRACKET L BRAKE LEVER | 1 | |
| 19 | 53173-KPL-900 | BAND, HANDLE BRKT | 1 | |
| 20 | 53173-KWP-910 | COVER L BRK LEVER BRKT | 1 | |
| 21 | 53175-KWP-D00 | LEVER, R. STEERING HANDLE | 1 | |
| 22 | 53176-GBL-870 | BOOT BRKT LEVER ROD | 1 | |
| 23 | 53178-KWP-D00 | LEVER, L. STEERING HANDLE | 1 | |
| 24 | 53180-KWP-910 | EQUALIZER COMP | 1 | |
| 25 | 53185-KWP-910 | ARM COMP RR BRK LOCK | 1 | |
| 26 | 53186-GBL-870 | COVER RR. BRK LOCK LEVER | 1 | |
| 27 | 53186-KWP-910 | SPG BRK LOCK ARM RETURN | 1 | |
| 28 | 53188-K24-900 | SPRING, DELAY | 1 | |
| 29 | 53189-K24-900 | STOPPER, EQUALIZER | 1 | |
| 30 | 53199-KZN-910 | SPG R LEVER RETURN | 1 | |
| 31 | 88110-KWP-F01 | MIRROR ASSY., R. BACK | 1 | |
| 32 | 88113-KRP-901 | CAP, LOCK NUT | 2 | |
| 33 | 88120-KWP-F01 | MIRROR ASSY., L. BACK | 1 | |
| 34 | 90102-KWP-900 | BOLT ADPT 8MM | 2 | |
| 35 | 90115-KPL-900 | SCREW, HNDL LEVER PIVOT | 1 | |
| 36 | 90115-KRP-980 | SCREW HNDL LEVER PIVOT | 1 | |
| 37 | 90115-KZN-910 | SCREW HNDL LEVER PIVOT | 1 | |
| 38 | 90118-KWP-910 | SCREW, PAN, 5X13 | 1 | |
| 39 | 90304-KPL-900 | NUT HEX 5 MM | 3 | |
| 40 | 90310-KPL-900 | LOCK NUT MIRROR R | 2 | |
| 41 | 93401-06020-00 | BOLT, WASHER, 6 X 20 | 2 | |
| 42 | 93500-05012-1H | SCREW, PAN, 5 X 12 | 2 | |
