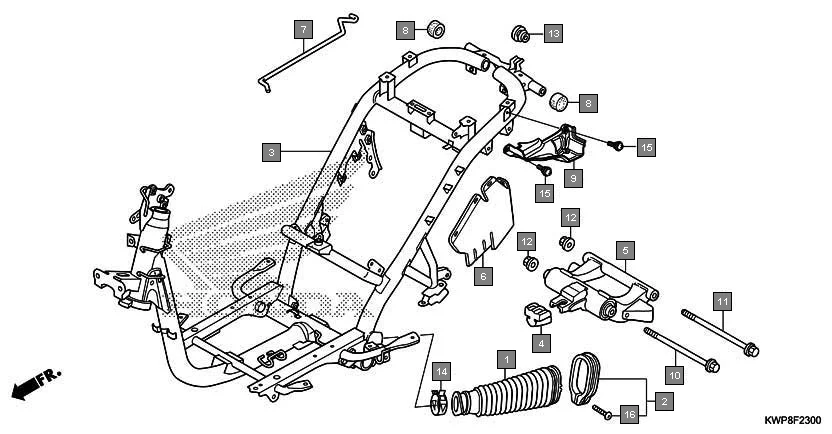

F-23 - FRAME BODY
HONDA Activa SCV110G · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11345-KWP-900 | DUCT, L. COVER | 1 | |
| 2 | 11346-KCW-870 | BAND, L. COVER. DUCT | 1 | |
| 3 | 50100-KWP-D01 | BODY COMP., FRAME | 1 | |
| 4 | 50352-GW0-730 | RUBBER, LINK STOPPER | 1 | |
| 5 | 50355-KWP-D00 | LINK SUB ASSY., ENGINE HANGER | 1 | |
| 6 | 80102-KWP-900 | PLATE, FRAME BODY SPLASH GUARD | 1 | |
| 7 | 81256-KWP-D00 | ROD, BODY OPENER | 1 | |
| 8 | 83561-KPL-840 | CUSHION, BODY COVER | 2 | |
| 9 | 83640-KWP-F00 | COVER, SEAT LOCK CABLE | 1 | |
| 10 | 90105-KJ9-000 | BOLT, FLANGE 10X210 | 1 | |
| 11 | 90106-GCC-000 | BOLT, FLANGE 10X238 | 1 | |
| 12 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 2 | |
| 13 | 90862-GCC-000 | PLUG, FRAME, END | 1 | |
| 14 | 91405-KPL-900 | CLAMP, D29 TUBE | 1 | |
| 16 | 93500-04025-0G | SCREW, PAN, 4X25 | 1 | |
