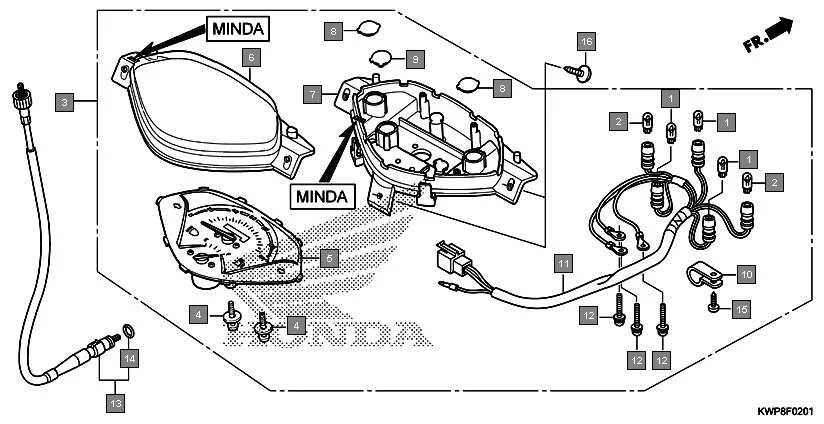

F-2-1 - METER(MINDA)
HONDA Activa SCV110G · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-KVE-900 | BULB, WEDGE BASE T10 (12V - 1.7 W) | 3 | |
| 2 | 34909-KVE-900 | BULB, WEDGE BASE (12V - 3 W) | 2 | |
| 3 | 37200-KWP-F02 | SPEEDOMETER ASSY.(MINDA) | 1 | |
| 4 | 37205-KWP-D21 | SCREW-WASHER, SPECIAL, 4X8 | 2 | |
| 5 | 37210-KWP-F02 | METER COMP., SPEED & FUEL | 1 | |
| 6 | 37211-KWP-D21 | LENS | 1 | |
| 7 | 37212-KWP-D21 | CASE | 1 | |
| 8 | 37213-KWP-D21 | LENS, PILOT TURN | 2 | |
| 9 | 37214-KWP-D21 | LENS, PILOT(HIGH BEAM) | 1 | |
| 10 | 37215-KWP-D21 | CLAMP | 1 | |
| 11 | 37224-KWP-D21 | SOCKET COMP. | 1 | |
| 12 | 37305-KWP-D21 | SCREW, 3X22 | 3 | |
| 13 | 44830-KWP-901 | CABLE COMP., SPEEDOMETER | 1 | |
| 14 | 91352-671-003 | O-RING, 8.5X1.5(ARAI) | 1 | |
| 15 | 93903-24420 | SCREW,TAPPING,4 X 16 | 1 | |
