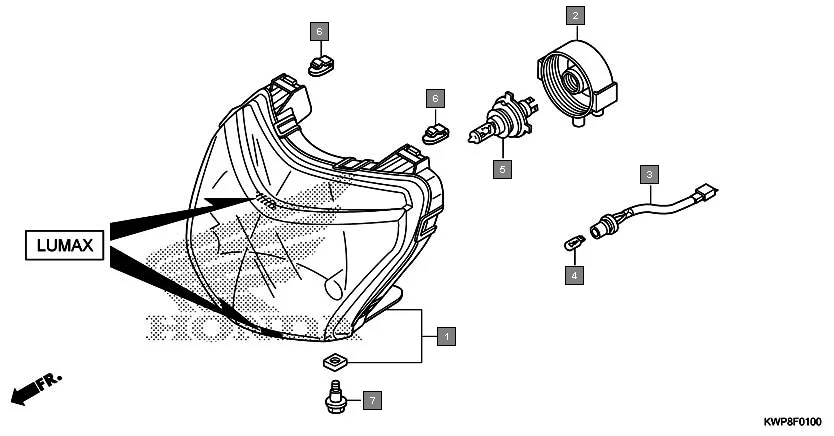

F-1 - HEADLIGHT(LUMAX)
HONDA Activa SCV110G · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33110-KWP-F01 | HEADLIGHT UNIT(LUMAX) | 1 | |
| 2 | 33126-KWP-F01 | COVER, RUBBER(LUMAX) | 1 | |
| 3 | 33150-KWP-F01 | SOCKET ASSY., POSITION LIGHT | 1 | |
| 4 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
