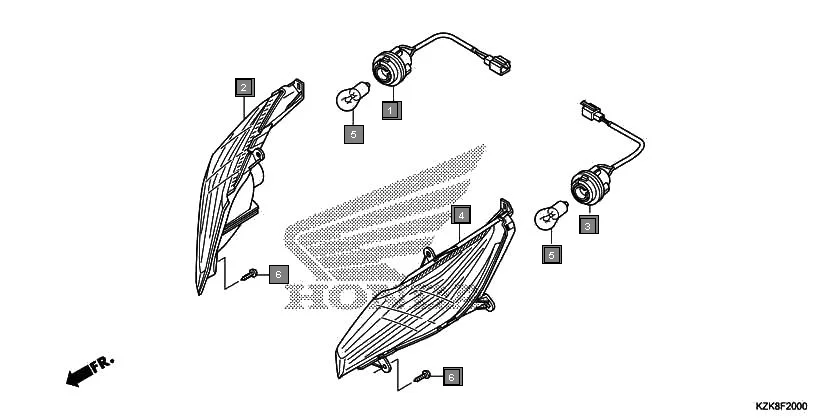

F-20 - FRONT WINKER
HONDA Dio SCV110FD · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33405-KZK-901 | SUB CORD, R. FR. WINKER | 1 | |
| 2 | 33410-KZK-901 | LENS COMP., R. | 1 | |
| 3 | 33455-KZK-901 | SUB CORD, L. FR. WINKER | 1 | |
| 4 | 33460-KZK-901 | LENS COMP., L. | 1 | |
| 5 | 34904-KRY-971 | BULB, WINKER LIGHT | 2 | |
| 6 | 93903-24310 | SCREW, TAPPING, 4X12 | 6 | |
