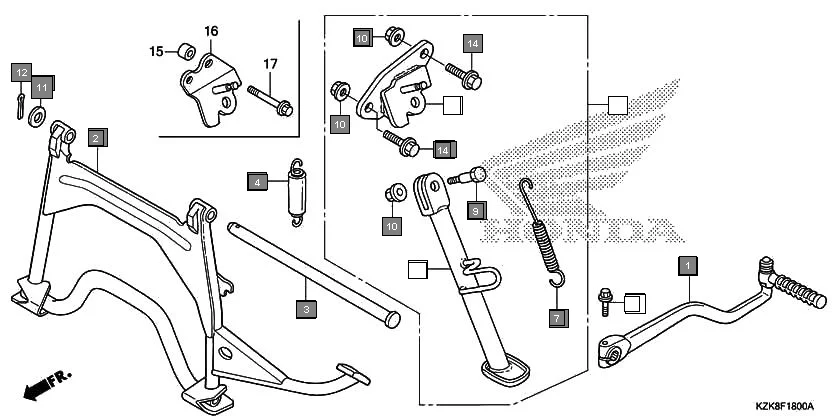

F-18 - KICK STARTER ARM/STAND
HONDA Dio SCV110FD · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28300-KVT-900 | ARM ASSY., KICK STARTER | 1 | |
| 2 | 50500-KWP-900 | STAND COMP MAIN | 1 | |
| 3 | 50503-GCC-000 | SHAFT, MAIN STAND | 1 | |
| 4 | 50505-GCC-000 | SPG.ASSY., MAIN STAND | 1 | |
| 5 | 50530-KWP-900 | BAR. COMP., SIDE STAND | 1 | |
| 6 | 50535-KWP-900 | BRKT SIDE STAND | 1 | |
| 7 | 50536-KPL-900 | SPG. SIDE SET | 1 | |
| 8 | 50560-KWP-900 | STAND SET, SIDE | 1 | |
| 9 | 90109-KPL-900 | BOLT SIDE STAND PIVOT | 1 | |
| 10 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 3 | |
| 11 | 94102-12000 | WASHER, PLAIN, 12MM | 1 | |
| 12 | 94201-25250 | PIN, SPLIT, 2.5X25 | 1 | |
| 13 | 95701-08025-07 | BOLT FLANGE 8X25 | 1 | |
| 13 | 95702-08025-07 | BOLT, FLANGE, 8X25 | 1 | |
| 14 | 95802-10025-07 | BOLT, FLANGE, 10X25 | 2 | |
| 14 | 95801-10025-07 | BOLT FLANGE 10X25 | 2 | |
