HONDA OEM Part
HONDA
OEM Part

90305-KWP-901

NUT, HEX., 16MM

Qty Required: 1 Ref #10 in Assembly

Part of Assembly

F-22
REAR WHEEL(1)
13 parts in this assembly

Assembly Diagram

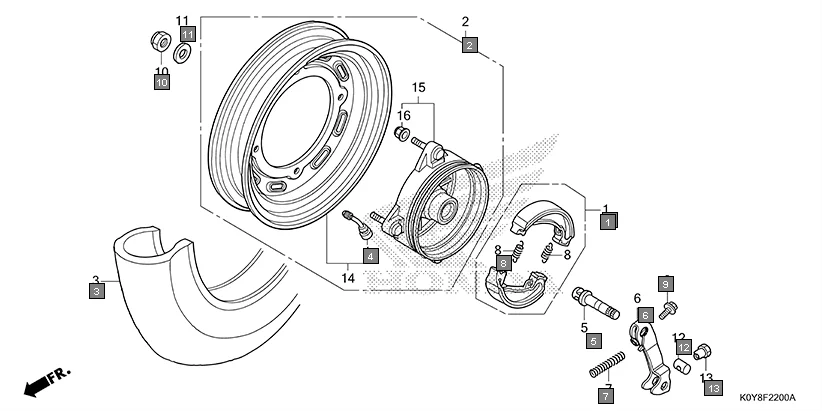

F-22 REAR WHEEL(1) diagram showing 90305-KWP-901
Ref #10

Supported Vehicles64

HHONDA Dio SCV110FBS
HONDA Dio SCV110FBS
Current
HHONDA Activa SCV110D
HONDA Activa SCV110D
HHONDA Activa SCV110E
HONDA Activa SCV110E
HHONDA Activa SCV110F
HONDA Activa SCV110F
HHONDA Activa SCV110G
HONDA Activa SCV110G
HHONDA Activa SCV110H
HONDA Activa SCV110H
HHONDA Activa SCV110J
HONDA Activa SCV110J
HHONDA Activa SCV110L
HONDA Activa SCV110L

Related Parts

42650-K0Y-D11ZA
WHEEL SUB ASSY., RR. *Y207M* ARMOUR GOLD METALLIC
42650-K0Y-D01ZB
WHEEL SUB ASSY., RR. *NH1*...................BLACK
42711-K0P-D61
TIRE, RR.(MRF)(90/100-10 53J)
42711-K0P-D62
TIRE, RR.(CEAT)(90/100-10 53J)
42711-KWP-G01
TIRE(MAXXIS)(90/100-10 53J)
43141-K0L-D00
CAM, RR. BRAKE
View all 13 parts in this assembly
