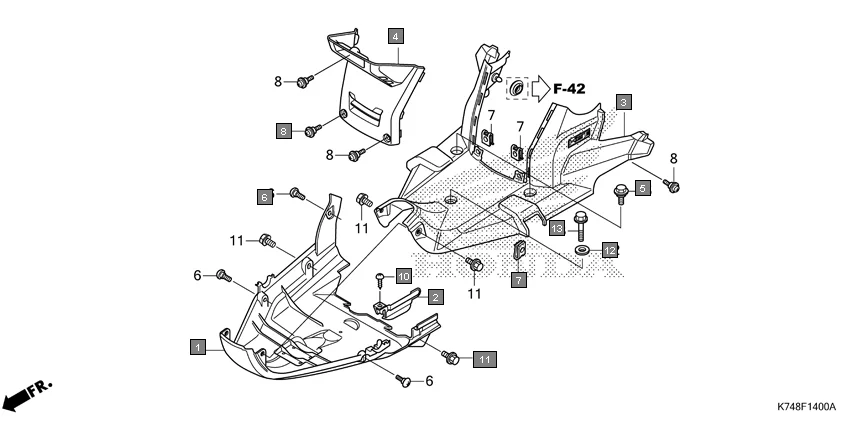

F-14 - FLOOR
HONDA Navi NVA110BK · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50621-K74-N00 | FLOOR, LOWER | 1 | |
| 2 | 50622-K74-N00 | LID, FLOOR LOWER | 1 | |
| 3 | 64300-K74-N20ZA | FLOOR SET(WL) *TYPE1* | 1 | |
| 4 | 80151-K74-N00 | COVER, CENTER | 1 | |
| 5 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 6 | 90150-MBG-000 | SCREW, PAN, 5X15 | 3 | |
| 7 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 8 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 10 | 93903-24320 | SCREW, TAPPING, 4X12 | 1 | |
| 11 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 4 | |
| 12 | 94103-06700 | WASHER, PLAIN, 6 MM | 1 | |
| 13 | 95701-06025-07 | BOLT, FLANGE, 6X25 | 1 | |
