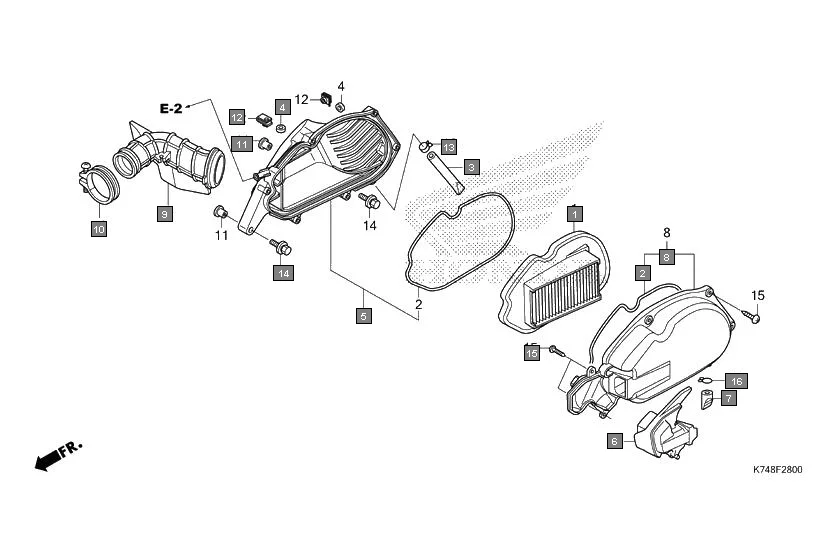

F-28 - AIR CLEANER
HONDA Navi NVA110BK · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17210-KVT-D00 | ELEMENT, AIR CLEANER | 1 | |
| 2 | 17212-GEE-000 | SEAL, AIR CLEANER COVER | 2 | |
| 3 | 17216-KVT-G00 | TUBE, DRAIN | 1 | |
| 4 | 17223-KVX-600 | COLLAR, AIR CLEANER | 2 | |
| 5 | 17225-K74-N20 | CASE SUB ASSY., AIR CLEANER | 1 | |
| 6 | 17234-K74-N00 | COVER, AIR CLEANER DUCT | 1 | |
| 7 | 17234-KCC-941 | TUBE, AIR CLEANER DRAIN | 1 | |
| 8 | 17235-KVT-G00 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 9 | 17253-KVT-G00 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 10 | 17254-K74-N00 | BAND, AIR CLEANER CONNECTING TUBE(40) | 1 | |
| 11 | 50731-KV3-770 | COLLAR, PILLION STEP SET | 2 | |
| 12 | 90311-MT3-000 | NUT, CLIP, 6 MM | 2 | |
| 13 | 90602-KPL-900 | CLAMP, D12 TUBE | 1 | |
| 14 | 93404-06040-07 | BOLT, WASH, 6 X 40 | 2 | |
| 15 | 93903-25480 | SCREW TAPPING 5X20 | 8 | |
