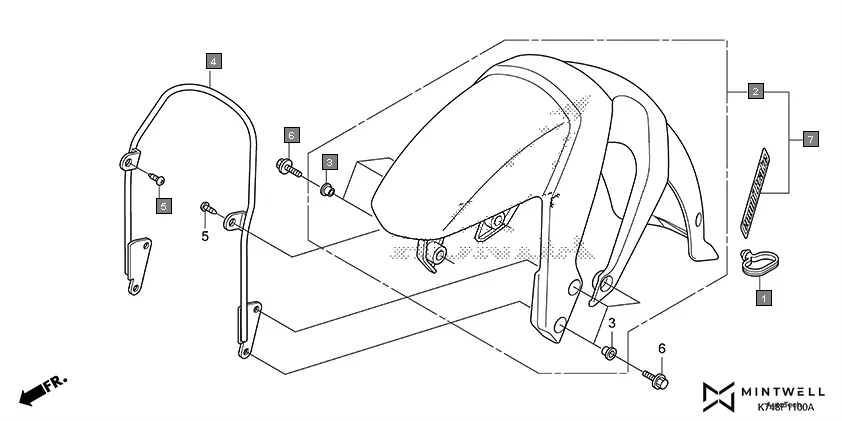

F-11 - FRONT FENDER
HONDA Navi NVA110BK · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45451-KTE-600 | GUIDE, FR. FENDER CABLE | 1 | |
| 2 | 61100-K74-N00 | FENDER, FR. | 1 | |
| 3 | 61101-K55-600 | COLLAR, FR. FENDER SETTING | 6 | |
| 4 | 61102-K74-N00 | STAY, FR. FENDER | 1 | |
| 5 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
| 6 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 6 | |
| 7 | 61000-K74-N60ZA | FENDER SET, FR.(WL) *TYPE1* | 1 | |
