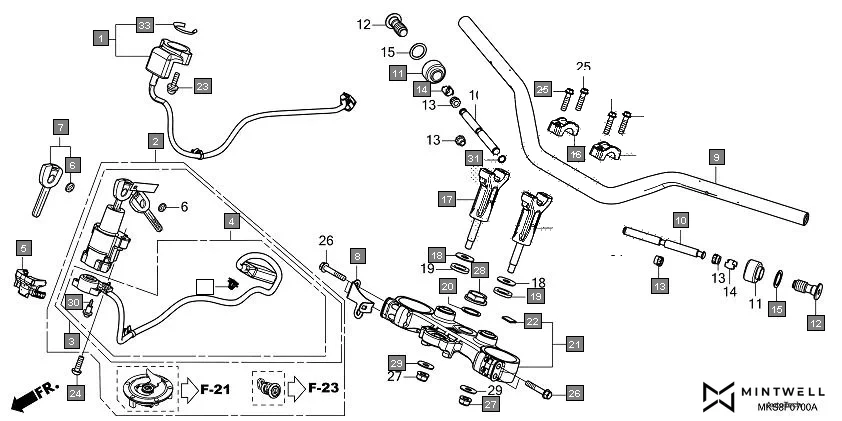

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA Africa Twin CRF1100DL2N · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30430-MKS-E02 | RECEIVER UNIT | 1 | |
| 2 | 35010-MKS-E01 | KEY SET | 1 | |
| 3 | 35100-MKS-E01 | SWITCH ASSY., COMBINATION & LOCK | 1 | |
| 4 | 35101-MKS-E01 | BASE COMP., CONTACT | 1 | |
| 5 | 35105-MKS-E00 | GUIDE, CORD | 1 | |
| 6 | 35113-MJK-N20 | EMBLEM, KEY | 4 | |
| 7 | 35121-MGP-D63 | KEY, BLANK(IMMOBI) | 1 | |
| 8 | 35139-MKS-E00 | STAY, R. HARNESS CLIP | 1 | |
| 9 | 53100-MKS-EA0 | PIPE, STEERING HANDLE | 1 | |
| 10 | 53104-MJP-G50 | WEIGHT B, STEERING HANDLE | 2 | |
| 11 | 53105-MKK-D01ZA | WEIGHT A, STEERING HANDLE *PB401M* MAT HANDLE WEIGHT BLUE METALLIC | 2 | |
| 12 | 53106-MJP-G50 | BOLT, HANDLE WEIGHT | 2 | |
| 13 | 53107-MJP-G50 | RUBBER, HANDLE WEIGHT | 4 | |
| 14 | 53108-MJP-G50 | RING, HANDLE WEIGHT SNAP | 2 | |
| 15 | 53109-MJP-G50 | RUBBER, KNUCKLE GUARD | 2 | |
| 16 | 53131-MKS-E00 | HOLDER, HANDLE UPPER | 2 | |
| 17 | 53132-MKS-E00 | HOLDER, HANDLE LOWER | 2 | |
| 18 | 53135-MJP-G50 | WASHER, HANDLE HOLDER | 2 | |
| 19 | 53136-MJP-G50 | RUBBER, HANDLE HOLDER | 2 | |
| 20 | 53215-MKS-E00 | WASHER, STEERING STEM NUT | 1 | |
| 21 | 53300-MKS-E00 | BRIDGE COMP., FORK TOP | 1 | |
| 22 | 86150-KPG-902 | EMBLEM, PRODUCT(UEHARA) | 1 | |
| 23 | 90020-MBW-610 | SCREW-WASHER, 5X22 | 2 | |
| 24 | 90107-MBG-000 | BOLT, ONE-WAY, 8MM | 2 | |
| 25 | 90124-MKS-E00 | BOLT, FLANGE, 8X32 | 4 | |
| 27 | 90304-GE8-003 | NUT, U, 10MM(FUSE RASHI) | 2 | |
| 28 | 90304-MEE-D00 | NUT, STEERING STEM | 1 | |
| 29 | 90501-MJP-G50 | WASHER, PLAIN, 10MM | 2 | |
| 30 | 91059-KY2-711 | SCREW, TAPPING, 3X16 | 3 | |
| 31 | 91305-GE1-920 | O-RING, 9X1.8 | 2 | |
| 32 | 91533-S82-003 | CLIP, COUPLER(BLACK) | 1 | |
| 33 | 30433-MKA-D81 | SEAL, IGNITION SWITCH | 1 | |
