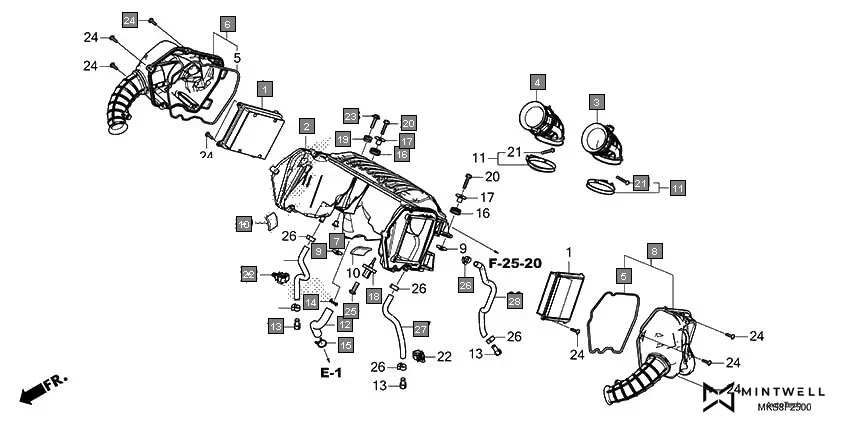

F-25 - AIR CLEANER
HONDA Africa Twin CRF1100DL2N · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17210-MKS-E00 | ELEMENT COMP., AIR CLEANER | 2 | |
| 2 | 17215-MKS-E00 | CASE COMP. | 1 | |
| 3 | 17226-MKS-E00 | TUBE, L. AIR CLEANER CONNECTING | 1 | |
| 4 | 17227-MKS-E00 | TUBE, R. AIR CLEANER CONNECTING | 1 | |
| 5 | 17229-MKS-E00 | SEAL, LID | 2 | |
| 6 | 17234-MKS-E00 | LID SUB ASSY., R. AIR CLEANER | 1 | |
| 7 | 17239-MKS-E00 | COLLAR, AIR CLEANER MOUNTING | 1 | |
| 8 | 17244-MKS-E00 | LID SUB ASSY., L. AIR CLEANER | 1 | |
| 9 | 17245-MKS-E00 | COLLAR, AIR CLEANER MOUNTING | 2 | |
| 10 | 17256-MJP-G50 | RUBBER, AIR CLEANER CASE | 2 | |
| 11 | 17257-MKS-E00 | BAND, CONNECTING TUBE | 2 | |
| 12 | 17265-MKS-E00 | TUBE, BREATHER | 1 | |
| 13 | 17370-419-700 | PLUG, BREATHER TUBE | 3 | |
| 14 | 17724-102-700 | CLIP, SUB TANK HOSE | 1 | |
| 15 | 17724-MJP-G50 | CLIP, TUBE | 1 | |
| 16 | 18422-KR3-870 | RUBBER A, MUFFLER MOUNTING | 2 | |
| 17 | 19052-MB0-000 | COLLAR, RADIATOR MOUNTING | 2 | |
| 18 | 37880-KWW-C01 | SENSOR ASSY., AIR TEMP | 1 | |
| 19 | 83545-KCJ-690 | RUBBER, SIDE COVER | 1 | |
| 20 | 90030-GHB-690 | BOLT, FLANGE, 6X28 | 2 | |
| 21 | 90140-KAE-000 | SCREW, PAN, 4 X 28 | 2 | |
| 22 | 90652-MGS-D31 | CLIP | 2 | |
| 23 | 93404-06028-07 | BOLT-WASHER, 6X28 | 1 | |
| 24 | 93903-25480 | SCREW TAPPING 5X20 | 10 | |
| 25 | 93913-255J0 | SCREW, TAPPING, 5X20 | 2 | |
| 26 | 95002-41200-00 | CLAMP D12.0 TUBE | 6 | |
| 27 | 95003-23020-60 | TUBE, VINYL, 8X12X200 (95003-23001-60M) | 2 | |
| 28 | 95003-23027-60 | V TUBE 8X12X270 | 1 | |
