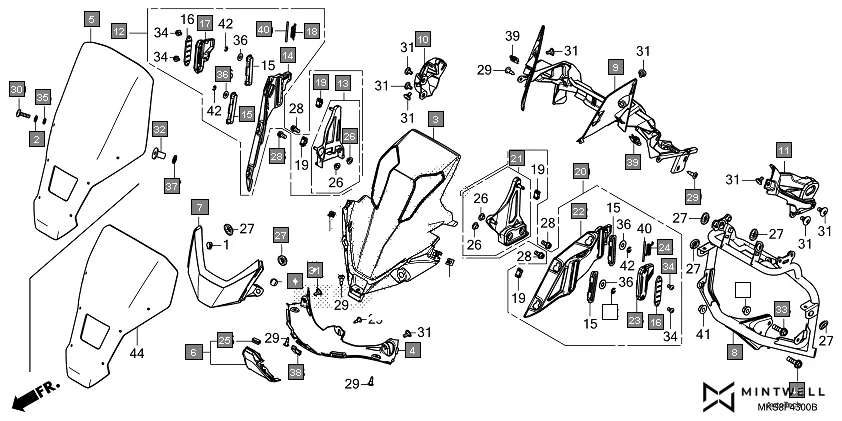

F-43 - FRONT COVER
HONDA Africa Twin CRF1100DL2N · 39 parts
Parts in This Assembly (39)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50318-041-600 | PLUG, USELESS HOLE | 2 | |
| 2 | 64205-166-610 | WASHER, SCREEN SETTING | 6 | |
| 3 | 64219-MKS-E20 | COVER ASSY., FR. UPPER | 1 | |
| 4 | 64221-MKS-E20 | SPOILER, FR. | 1 | |
| 5 | 64250-MKS-E20ZA | WINDSCREEN SET(WL) *TYPE1* | 1 | |
| 6 | 64252-MKS-E20ZA | COVER ASSY., FR. LOWER *TYPE2* | 1 | |
| 7 | 64255-MKS-E20ZA | COWL SET, FR. CENTER *TYPE2* | 1 | |
| 8 | 64501-MKS-E20 | STAY COMP., FR. COWL | 1 | |
| 9 | 64531-MKS-E20 | COVER, INNER PANEL | 1 | |
| 10 | 64541-MKS-E20 | COVER, R. FR. WINKER | 1 | |
| 11 | 64591-MKS-E20 | COVER, L. FR. WINKER | 1 | |
| 12 | 64700-MKS-E20 | RAIL ASSY., R. SCREEN ADJUST | 1 | |
| 13 | 64705-MKS-E20 | BRACKET, R. SCREEN ADJUST | 1 | |
| 14 | 64710-MKS-E20 | RAIL, R. SCREEN ADJUST | 1 | |
| 15 | 64715-MJM-D40 | GUIDE, RAIL | 4 | |
| 16 | 64725-MJM-D40 | PLATE, LOCK | 2 | |
| 17 | 64750-MJM-D40 | LEVER, R. LOCK | 1 | |
| 18 | 64755-MJM-D40 | SPRING, R. LEVER | 1 | |
| 19 | 64780-MJM-D40 | SLIDER, GUIDE | 4 | |
| 20 | 64800-MKS-E20 | RAIL ASSY., L. SCREEN ADJUST | 1 | |
| 21 | 64805-MKS-E20 | BRACKET, L. SCREEN ADJUST | 1 | |
| 22 | 64810-MKS-E20 | RAIL, L. SCREEN ADJUST | 1 | |
| 23 | 64850-MJM-D40 | LEVER, L. LOCK | 1 | |
| 24 | 64855-MJM-D40 | SPRING, L. LEVER | 1 | |
| 25 | 77212-MFJ-D00 | PROTECTOR, RUBBER | 1 | |
| 26 | 80118-MFJ-D00 | COLLAR, FENDER | 4 | |
| 28 | 90116-MJM-D40 | BOLT, SPECIAL, 6X16 | 4 | |
| 30 | 90118-MJP-G50 | SCREW, PAN, 5X20(SUS) | 6 | |
| 32 | 90156-GZ4-670 | NUT, WELL, 5MM | 6 | |
| 33 | 90164-GHB-670 | BOLT, FLANGE, 8X25 | 1 | |
| 34 | 90164-MJT-E00 | BOLT, SOCKET, 4X8 | 4 | |
| 35 | 90504-964-000 | WASHER, THRUST, 5MM | 6 | |
| 36 | 90504-MGH-H20 | WASHER, 6MM | 4 | |
| 37 | 90507-ZV1-000 | WASHER, NYLON, 9MM | 6 | |
| 38 | 90651-K14-A31 | CLIP, SLIDE | 1 | |
| 40 | 90753-MJM-D40 | PIN, SPRING, 3X52 | 2 | |
| 41 | 94050-08070 | NUT, FLANGE, 8MM | 2 | |
| 42 | 94540-04029 | E-RING, 4MM | 4 | |
| 43 | 96300-08032-07 | BOLT, FLANGE, 8X32 | 1 | |
