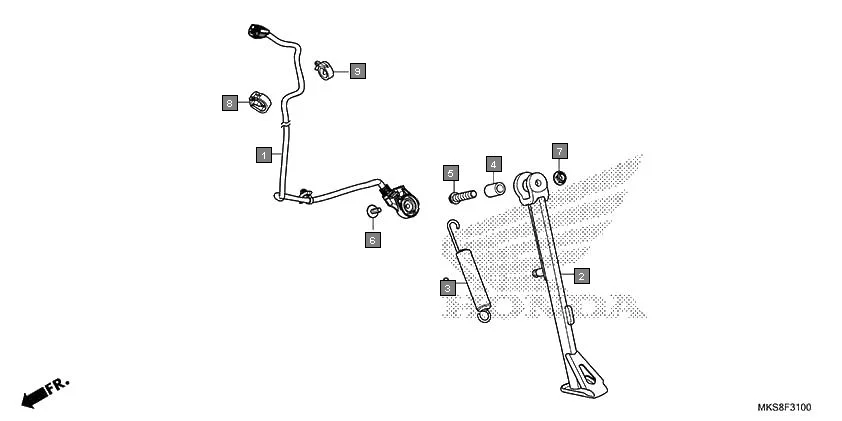

F-31 - SIDE STAND
HONDA Africa Twin CRF1100DL2N · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35700-MJP-G51 | SWITCH ASSY., SIDE STAND | 1 | |
| 2 | 50530-MKS-J30 | BAR COMP., SIDE STAND | 1 | |
| 3 | 50531-GGK-000 | SPRING ASSY., SIDE STAND | 1 | |
| 4 | 50601-MJP-G50 | COLLAR, SIDE STAND | 1 | |
| 5 | 90105-MJP-G50 | BOLT, SIDE STAND PIVOT | 1 | |
| 6 | 90147-MCE-950 | BOLT, SPECIAL, 6X16 | 1 | |
| 7 | 90203-MF9-710 | NUT, SIDE STAND | 1 | |
| 8 | 90690-MEF-800 | CLAMP, HARNESS | 1 | |
| 9 | 91558-SD5-003 | CLIP, WIRE HARNESS(BLACK) | 1 | |
