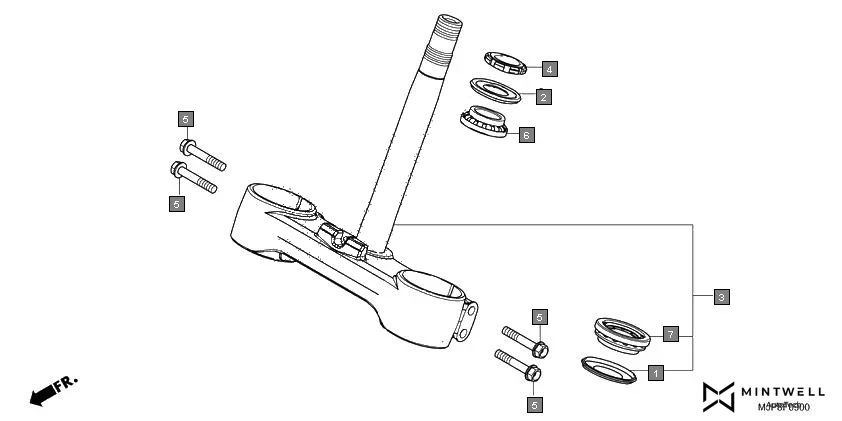

F-9 - STEERING STEM
HONDA Africa Twin CRF1000DH · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53214-371-010 | DUST SEAL, STEERING HEAD | 1 | |
| 2 | 53214-KZZ-901 | DUST SEAL, STEERING UPPER | 1 | |
| 3 | 53219-MJP-G50 | STEM SUB ASSY., STEERING | 1 | |
| 4 | 53229-MN1-650 | THREAD, STEERING HEAD TOP | 1 | |
| 5 | 90109-MR7-000 | BOLT, FLANGE, 8X45 | 4 | |
| 6 | 91015-KT8-005 | BEARING, HEAD PIPE UPPER(KOYO) | 1 | |
| 7 | 91016-KT8-005 | BEARING, HEAD PIPE UNDER(KOYO) | 1 | |
