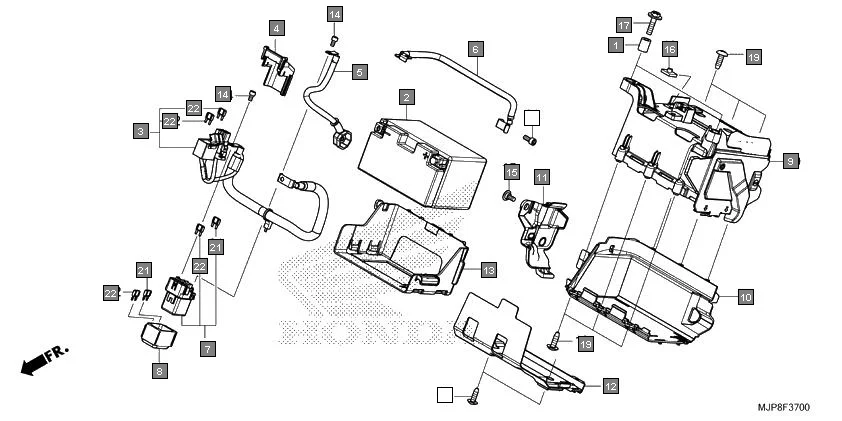

F-37 - BATTERY
HONDA Africa Twin CRF1000DH · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30514-MZ7-000 | COLLAR, SPECIAL, 6X15 | 2 | |
| 2 | 31500-Z25-C61 | BATTERY(YTZ14S)(GS YUASA) | 1 | |
| 3 | 32401-MJP-G80 | CABLE, STARTER BATTERY | 1 | |
| 4 | 32406-MJP-G51 | COVER, STARTER MAGNETIC SWITCH | 1 | |
| 5 | 32410-MJP-G50 | CABLE, STARTER | 1 | |
| 6 | 32601-MJP-G50 | CABLE, BATTERY EARTH | 1 | |
| 7 | 35850-MFT-641 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 8 | 35856-MJP-G51 | RUBBER, SHOCK | 1 | |
| 9 | 80121-MJP-G50 | BOX, BATTERY UPPER | 1 | |
| 10 | 80122-MJP-G50 | BOX, BATTERY BOTTOM | 1 | |
| 11 | 80123-MJP-G50 | COVER, BATTERY BOX | 1 | |
| 12 | 80128-MJP-G50 | GUARD, BATTERY HEAT | 1 | |
| 13 | 80129-MJP-G50 | CASE, BATTERY | 1 | |
| 14 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 15 | 90114-MGE-D00 | BOLT, SPECIAL, 6X15 | 1 | |
| 16 | 90303-HA0-680 | NUT, SPECIAL, 6X7 | 1 | |
| 17 | 93404-06025-08 | BOLT, WASH, 6 X 25 | 2 | |
| 18 | 93913-14180 | SCREW, TAPPING, 4X10(PO) | 2 | |
| 19 | 93913-25480 | SCREW, TAPPING, 5X16(PO) | 6 | |
| 20 | 96600-06014-00 | BOLT, SOCKET, 6X14 | 1 | |
| 21 | 98200-41500 | FUSE, MINI(15A) | 2 | |
| 22 | 98200-43000 | FUSE, MINI(30A) | 4 | |
