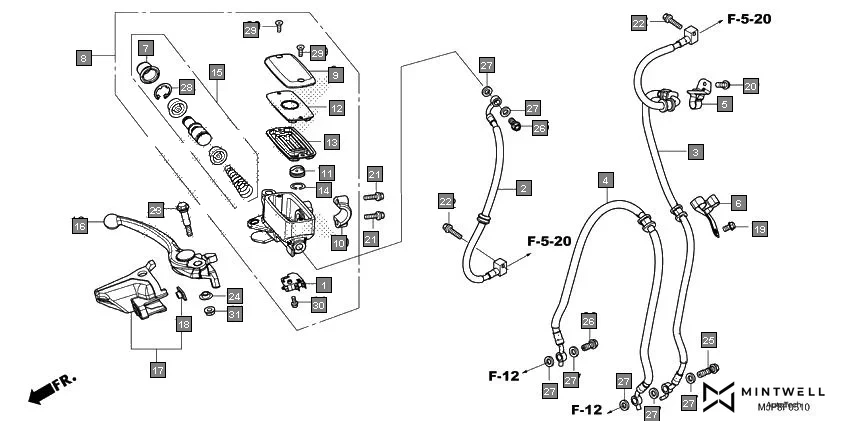

F-5-10 - FR. BRAKE MASTER CYLINDER
HONDA Africa Twin CRF1000DH · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35340-MGS-D31 | SWITCH ASSY., FR. STOP | 1 | |
| 2 | 45125-MJP-G61 | HOSE COMP. A, FR. BRAKE | 1 | |
| 3 | 45128-MJP-G61 | HOSE COMP. D, FR. BRAKE | 1 | |
| 4 | 45129-MJP-G61 | HOSE COMP. E, FR. BRAKE | 1 | |
| 5 | 45156-MJP-G50 | CLAMPER, FR. BRAKE HOSE | 1 | |
| 6 | 45157-MJP-G50 | CLAMPER, FR. BRAKE HOSE LOWER | 1 | |
| 7 | 45504-410-003 | BOOT COMP. | 1 | |
| 8 | 45510-MJP-G51 | CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) | 1 | |
| 9 | 45513-MM5-016 | CAP, MASTER CYLINDER(NISSIN) | 1 | |
| 10 | 45517-166-006 | HOLDER, MASTER CYLINDER | 1 | |
| 11 | 45518-MEN-J01 | SEPARATOR COMP. | 1 | |
| 12 | 45518-MM5-006 | PLATE, DIAPHRAGM | 1 | |
| 13 | 45520-MM5-006 | DIAPHRAGM | 1 | |
| 14 | 45523-KA3-731 | RING | 1 | |
| 15 | 45530-MA4-671 | CYLINDER SET, MASTER | 1 | |
| 16 | 53170-MEJ-016 | LEVER ASSY., R. HANDLE | 1 | |
| 17 | 53191-MJP-G60 | HOLDER COMP., R. KNUCKLE | 1 | |
| 18 | 61304-HB3-003 | NUT, SPECIAL, 6MM | 1 | |
| 19 | 90013-GHB-600 | BOLT, FLANGE, 6X10 | 1 | |
| 20 | 90013-GHB-620 | BOLT, FLANGE, 6X14 | 1 | |
| 21 | 90013-GHB-660 | BOLT, FLANGE, 6X22 | 2 | |
| 22 | 90013-GHB-670 | BOLT, FLANGE, 6X25 | 2 | |
| 23 | 90114-MGH-641 | BOLT, HANDLE LEVER | 1 | |
| 24 | 90127-KF0-770 | COLLAR, 6X4 | 1 | |
| 25 | 90145-MR8-014 | BOLT, OIL, 10X34 | 1 | |
| 26 | 90145-MS9-612 | BOLT, OIL, 10X22(SAGA) | 2 | |
| 27 | 90545-300-000 | WASHER ,OIL BOLT | 7 | |
| 28 | 90651-MA5-671 | CIRCLIP | 1 | |
| 29 | 93600-04012-1G | SCREW, FLAT, 4X12 | 2 | |
| 30 | 93893-04012-17 | SCREW-WASHER, 4X12 | 1 | |
| 31 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
