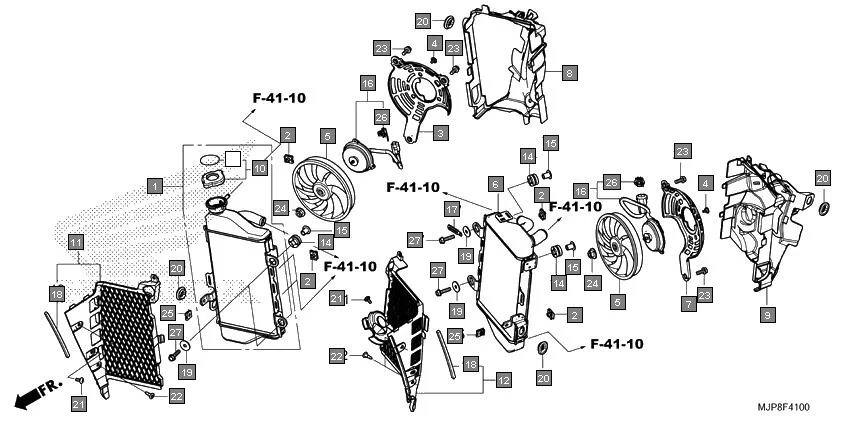

F-41 - RADIATOR
HONDA Africa Twin CRF1000DH · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19010-MJP-A61 | RADIATOR COMP., R. | 1 | |
| 2 | 19014-KEA-003 | NUT, SETTING(6MM) | 6 | |
| 3 | 19015-MJP-G51 | SHROUD COMP., R. FAN | 1 | |
| 4 | 19016-KEA-003 | SCREW, PAN, 4X8.5 | 6 | |
| 5 | 19020-MGS-D31 | FAN COMP., COOLING(T.RAD) | 2 | |
| 6 | 19020-MJP-G51 | RADIATOR COMP., L. | 1 | |
| 7 | 19025-MJP-G51 | SHROUD COMP., L. FAN | 1 | |
| 8 | 19035-MJP-G50 | SHROUD, R. RADIATOR | 1 | |
| 9 | 19036-MJP-G50 | SHROUD, L. RADIATOR | 1 | |
| 10 | 19037-GEE-710 | CAP COMP., RADIATOR | 1 | |
| 11 | 19040-MJP-G50 | GRILLE ASSY., R. RADIATOR | 1 | |
| 12 | 19045-MJP-G50 | GRILLE ASSY., L. RADIATOR | 1 | |
| 13 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 | |
| 14 | 19051-KA3-830 | RUBBER, RAD MT | 4 | |
| 15 | 19052-MFF-D00 | COLLAR, RADIATOR MOUNTING | 4 | |
| 16 | 19080-MJP-G51 | MOTOR ASSY., FAN | 2 | |
| 17 | 32925-958-000 | CLIP, PULSER CORD | 1 | |
| 18 | 64212-MJP-G50 | SEAL A, MIDDLE COWL | 2 | |
| 19 | 77302-124-000 | WASHER, SEAT MOUNTING | 4 | |
| 21 | 90115-KW7-900 | SCREW, VISOR SPECIAL SETTING | 2 | |
| 23 | 90120-KCR-003 | BOLT-WASHER, 6X16 | 6 | |
| 24 | 90315-MFL-003 | NUT, FLANGE, 3MM | 2 | |
| 25 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 26 | 91565-SEL-003 | CLIP, COUPLER(BLACK) | 2 | |
| 27 | 95701-06025-07 | BOLT, FLANGE, 6X25 | 4 | |
