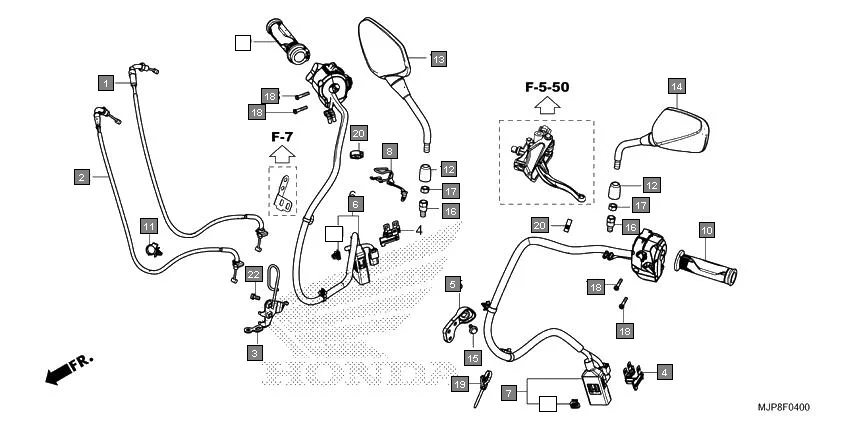

F-4 - SWITCH/CABLE
HONDA Africa Twin CRF1000DH · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-MJP-G51 | CABLE COMP. A, THROTTLE | 1 | |
| 2 | 17920-MJP-G51 | CABLE COMP. B, THROTTLE | 1 | |
| 3 | 17925-MJP-G50 | GUIDE, THROTTLE CABLE | 1 | |
| 4 | 32121-MJP-G50 | HOLDER, COUPLER | 2 | |
| 5 | 32151-MJP-G50 | STAY, CLIP | 1 | |
| 6 | 35130-MJP-G82 | SWITCH ASSY., ENGINE STOP & | 1 | |
| 7 | 35200-MJP-G82 | SWITCH ASSY., WINKER & HAND | 1 | |
| 8 | 53111-MJP-G50 | CLAMPER, CABLE | 1 | |
| 9 | 53140-MGE-000 | GRIP ASSY., THROTTLE | 1 | |
| 10 | 53166-MGE-000 | GRIP, L. HANDLE | 1 | |
| 11 | 53781-SE0-952 | CLIP, RETURN HOSE | 1 | |
| 12 | 88130-MFG-D00 | COVER, LOCK NUT | 2 | |
| 13 | 88210-MJP-G80 | MIRROR COMP., R. BACK | 1 | |
| 14 | 88220-MGS-D30 | MIRROR COMP., L. BACK | 1 | |
| 15 | 90107-KSE-000 | BOLT, FLANGE, 6MM | 1 | |
| 16 | 90130-MGS-D31 | BOLT, ADAPTER, 10MM | 2 | |
| 17 | 90310-MGS-D31 | NUT, HEX., 10MM (LEFT HAND THREAD) | 2 | |
| 18 | 90508-MGE-D00 | SCREW-WASHER, 5X25 | 4 | |
| 19 | 90690-GHB-611 | CLIP, HARNESS BAND, 25MM | 1 | |
| 20 | 90690-MEF-800 | CLAMP, HARNESS | 2 | |
| 21 | 91533-SDA-003 | CLIP, COUPLER(BEIGE) | 2 | |
| 22 | 96001-06012-07 | BOLT, FLANGE, SH., 6 X 12 | 1 | |
